> pl-310 PL310 dsp mw/fm/lw/sw/ats tecsun digital radio

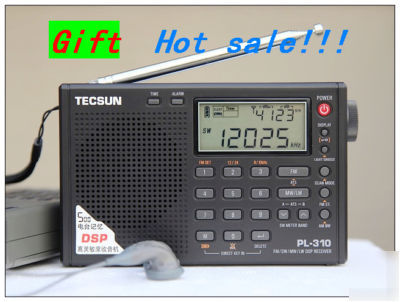

pl-310 PL310 dsp mw/fm/lw/sw/ats tecsun digital radio
At present, most sellers are Chinese manual.
For your convenience, specially equipped with English manual. To remove your troubles.
GIFT1:Genuine Rechargeable battery, USB cable (to connect the computer to the radio charge)
Original parts in the machine, the manufacturer is not configured outdoor antenna.

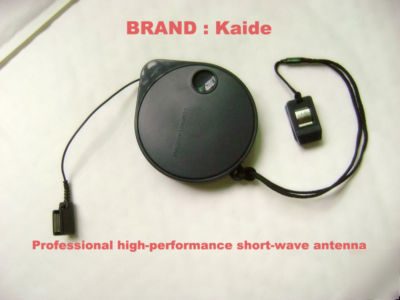

Brand Kaide antenna configuration effectively block outside signal, greatly enhanced radio sensitivity and clarity.
This machine adopts the United States SILICON LABS si4734 digital signal processing (DSP) chip, the analog FM / AM radio
signals to digital conversion, and use of modern software-defined radio principles to process and demodulation, which greatly improved the receiver sensitivity, selectivity, SNR and anti-jamming capability.
can receive FM stereo, shortwave, medium wave, long wave, practical multi-function, easy to operate, very energy saving.
FM receiving frequency range can be set to receive 87 ~ 108MHz.
64 ~ 108MHz (to receive part of the campus radio),
87.5 ~ 108 MHz (China, Europe and the United States standard).
AM IF bandwidth can be set to (1 ~ 6kHz).
with FM / SW external antenna jack.
has a very useful multi-functional digital adjustment knob can be used to adjust the time, adjusting the frequency, select the address.
6 kinds of selection sets mode: manual search radio frequency, direct input frequency numbers, manually search for the stored radio stations or directly onto a pre-existing address numbers, visit the radio frequency automatic search, automatic search browse stored station.
can be manual, semi-automatic, fully automatic (ATS) to store up to 500 radio frequencies, including FM / MW / LW 100 each can be saved, short-wave frequencies can be saved 200.
Multi-function display: can display the radio frequency, signal strength / noise ratio, temperature, battery power and so on.
use of high-quality paper cone speakers, sound quality soft Naiting.
Health as Germany comes with a special high-quality DSP radios E402 headphones, you can enjoy to enjoy the highest quality FM stereo radio
12/24 hour time selectable, with regular radio, beep Naoxing feature, you can boot from time to time, listen to a pre-stored radio stations, and can be set at a 90 minutes automatic shutdown.
Sleep with a smart auto-off function (1 ~ 120 minutes)
the use of three R6 (V) battery-powered, you can also use nickel-metal hydride battery (Replacement parts) supply, and using a common USB jack on the intelligent battery charging.
By-laws: PL-310's basic technical indicators:
Frequency Range Frequency Modulation (FM) standard frequency coverage:
Russia, part of the campus radio: 64 ~ 108 MHz
Europe and the United States: 87.5 ~ 108MHz,
Short-wave (SW) 2300 ~ 21950 kHz
Medium-wave (MW) in Asia, Africa and Europe: 522 ~ 1620 kHz
Noise limit sensitivity Frequency Modulation
Medium-wave (MW) (S / N = 26dB) > 1 mV / m
Long-wave (LW) (S / N = 26dB) >10 mV / m
Short-wave (SW) (S / N = 26dB) > 20 uV
Optional: Frequency Modulation
FM stereo separation: better than 35 dB
Headset: 8-32 ohm stereo headset
Storage Memory: Total 500 Frequency Modulation
Naoxing mode: radio or buzzer downtown downtown ring ring
speaker size and type of Speaker Dimensions: Diameter 57 mm / 16 cone speaker
Power Supply : External Power: DC 5V 300 mA USB Adapter
Physical Size: W 141 high 87 thickness 30 (mm)
Weight: About 187g (without batteries)
Random Annex: Stereo headphones, protective cover, English manual, certification, service guarantees, after-sales follow-up survey form.
and efficient.Arrival time is 5 ~ 14 working days.
