Wavetek 23 12 mhz function generator refurbished

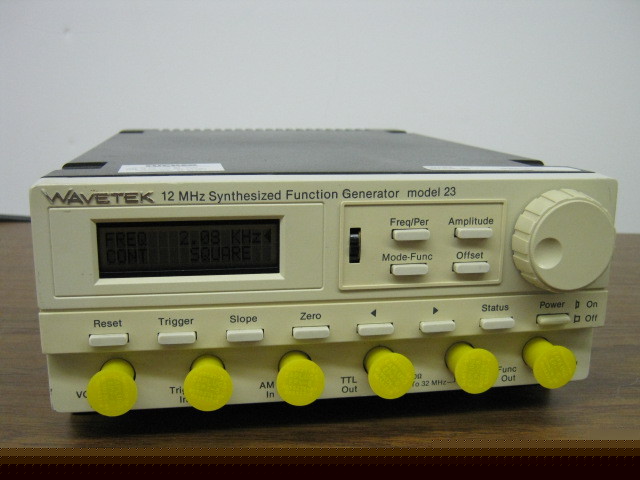

Wavetek 23 12 MHz Function Generator Refurbished
The Model 23 Function Generator has a frequency range of 10mHz to 12 MHz in continuous, triggered, and gated modes. The model 23 has an output level of 10mV to 20V peak to peak. The frequency range at the TTL and ECL outputs extends to 32MHz, and the synthesized mode has four digits of frequency resolution with .005% accuracy. Inputs are provided for external frequency and amplitude modulation. Parameters are selected by front panel keys, and numeric values are incremented or decremented with the rotary encoder knob. All parameters are displayed on an LCD display.
* Programmable Waveforms: Sine, triangle, square, and dc (1 kHz-12MHz)
* Modes: Continuous, trigger, gate, clock, continuous synthesized
* Frequency Range: 10 MHz to 12 MHz Resolution: 4 digits Accuracy: 50 ppm
* Mode Lock Time: less than 30 ms Repeatability (24 hr.): 0.0003% in synthesized mode
* Amplitude Range: 0.01 to 10.2 Vp-p 50 Ohms (20V open)
* DC Offset Range: DR or offset programmable from -5.1V to +5.1V
* Peak Output Current: 100 mA ECL
