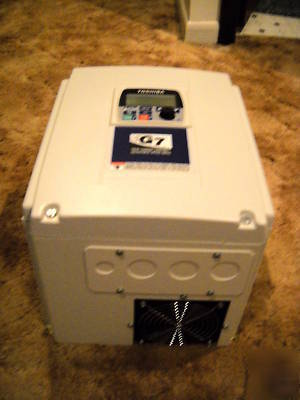

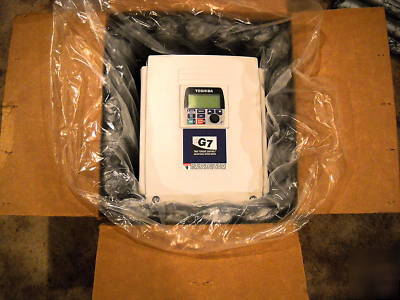

New toshiba G7 30HP inverter drive VT130G7U4330B in box

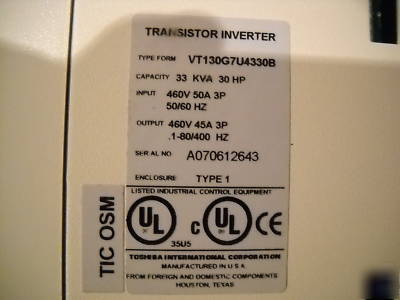

Toshiba G7 30HP AC TRANSISTOR INVERTER DRIVE

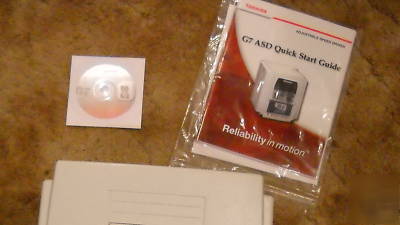

New In Box (Never Used) complete with Manual and software CD
(Extra charge for HI, AK & PR)
If you have any questions please e-mail me or google the model # for more specifics on this unit.
I'm selling this for my son, who is an electrician.
Adjustable between 0.5 - 15 kHz (ASD specific, consult factory)
Sine Wave PWM System- Flux Field Current Vector Control
Open Loop Vector, Closed Loop Vector, Constant Torque, Variable Torque, Auto Torque Boost, Manual Torque Boost, 5-point V/f custom curve setting
110% continuous, 150% for two minutes up to 100 HP, consult factory for ratings above 100 HP
Rotary Encoder integrated into EOI, 0 - 10 V, + -10 V, 4-20 mA, Binary Input, Motorized Potentiometer Input
Analog Input 0.2% of the maximum output frequency, Digital Input 0.01% of the maximum output frequency
0.01 Hz Operation Panel, 0.1 Hz Analog Input, 10 to 12-bit A-D Converter
Closed Loop (0.01%, 1000:1 speed range), Open Loop (up to 0.1%, 60:1 speed range)
Closed Loop (5%, ripple < 2%, 100 range), Open Loop (10%, ripple < 3%, 50% to 100% range)
Eight Discrete Input Terminals programmable to 68 functions. The number of terminals may be increased using optional hardware.
One 4 - 20 mA, one 10 V and two 0 - 10 V (one of which is commonly used with a potentiometer)
Three Output Contacts programmable to 60 functions
Two 4 - 20 mA/0 - 1 mA outputs programmable to 33 functions
Optional Three-Channel Signal Isolation for 4 - 20 mA input and the AM and FM outputs rated at 750 V
Control Board Communications Ports
RS232/485 and TTL Ports standard
Input (L1, L2, L3), Output (T1, T2, T3), DCL (PO, PA), DBR (PA, PB), DC BUS (PA, PC)
DC Bus Control-Power for units up to the 6750B, allows control power ride-through during momentary power loss
ASD can clear fault upon trip automatically. Programmable to 10 times with wait time up to 10 seconds between retry
ASD will catch a freewheeling motor smoothly.
Temperature: -10 to +40 C, 14 to 104 F, Humidity: 95% non-condensing
Electronic Operator Interface (EOI)
LCD EOI (Liquid Crystal Display / Electronic Operator Interface)
124 x 64 graphics capable, back-lit LCD can display multiple parameters simultaneously. Keypad may be operated from an external power source. Software is flash upgradeable.
Run (Red) / Stop (Green), Local / Remote (Green), DC Bus Charge Indication (Red)
Local / Remote, Monitor / Program, Run, Enter, ESC, Stop / Reset, Up, Down
Encoder with Integrated Enter Key for Frequency Setting and Parameter adjustments
Completely configurable along with Scaling Factor Multiplier, Current Display selectable between Amps or %, Voltage Display selectable between Volts or %
Remote mountable up to 1000' away from the ASD
