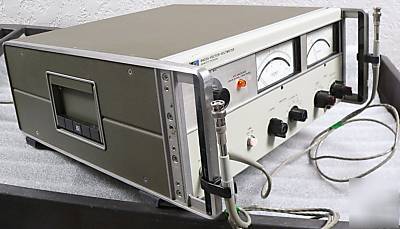

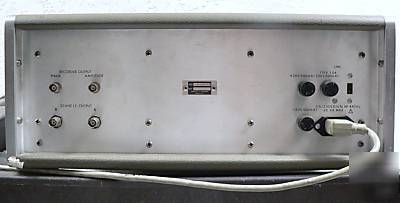

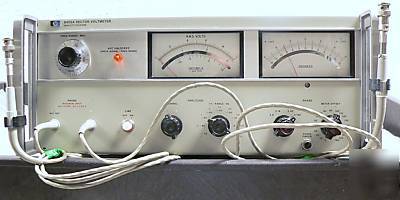

Hp 8405A vector voltmeter - now on sale
HP 8405A VECTOR VOLTMETER - NOW ON SALE! SERIAL #: 1527A06199
This unit measures voltage vectors described by both magnitude and phase Ideal for almost any design and test application in the frequency range of 1 to 1000MHz.
It's measurement capabilities include insertion loss and group delay of passband filters and other transmission devices, gain and phase margin of amplifiers, complex impedance of mixers, antennas, etc.
Two channels allow for ratio measurements and phase difference between the two channels.
Gain or loss in excess of 90dB and phase measurements with 0.1 resolution over a 360 phase range are possible.
* Measures voltage vectors described by both magnitude and phase
* Ideal for almost any design and test application in the frequency range of 1 to 1000MHz
* Measurement capabilities include insertion loss and group delay of passband-filters and other transmission devices, gain and phase margin of amplifiers, complex impedance of mixers, antennas, etc.
* Two channels allow for ratio measurements and phase difference between the two channels
* Gain or loss in excess of 90dB and phase measurements with 0.1 resolution over a 360 phase range are possible
http:// /files/datasheet/agilent_hp_8405a.pdf
