Harig lectric centers od grinding fixture

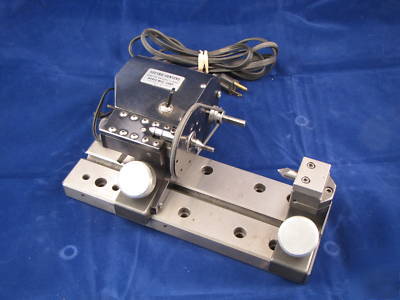

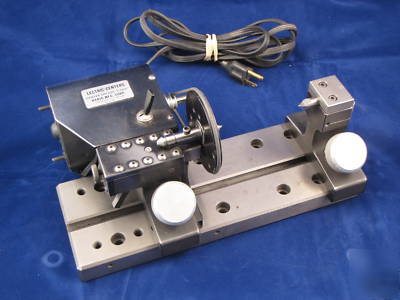

This is a used Harig's cylindrical grinding fixture, used for precision diameter grinding between centers. Dead center design permits "tenths" accuracies. Quickly converts a surface grinder, or a tool and cutter grinder, to cylindrical grinding applications. Can be used to grind shafts, shanks, pins, punches, reamers, and counterbores. Also can grind angles, grooves, and races. Motorized head with two speed pulley enables fast stock removal.
* Hardened and ground tool steel base allows grinding between centers up to 7 inches.
* Grind and inspect parts within 0.00005 TIR.
* Fan cooled motor and two speed pulley for efficient operation. Two extra "o-ring" belts are included.

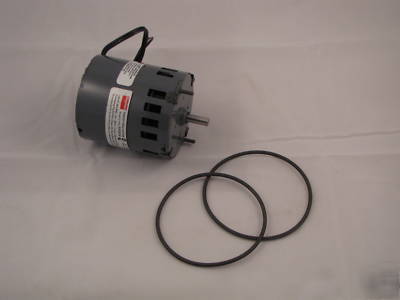

* Additional motor is included which rotates work piece in opposite direction, for grinding on a tool and cutter grinder.
* Tail-stock taper adjustment allows extremely accurate settings to be obtained.
* Head-stock center is on lever controlled sliding ram and has adjusting screw for spring tension.
* Motors 115V, 60 Cycle, (1) CW, (1) CCW
If you have any questions regarding this item, please email me.
