Cnc linear actuator 12" slide cnc stepper motor drive
SEE MANY MORE ACTUATORS AND LENGTHS BY CLICKING ON "VIEW SELLERS STORE" THEN CLICK "ACTUATORS:

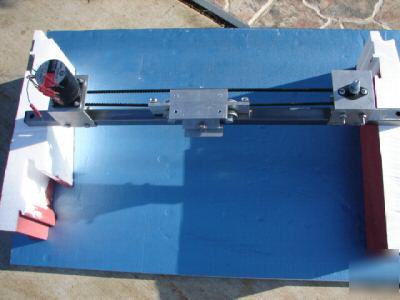

Linear Actuator with 12" of trolley travel, and a 2-1/4" by 4" mounting plate with 4 mounting holes 1/4-20 threads. This actuator mounts on each end with a 3/8" through hole drilled through the one inch square steel tubing main frame top to bottom. This actuator can be driven by any NEMA 23 stepper motor (not included) driving a 0.20XL timing belt with a 15 tooth timing pulley (included) mounted to the motor. Overall dimension outside to outside is 30"; top to bottom 7"; width 5". The actuator trolley rides on six flanged ball bearing wheels.
