> New agilent 355C step attenuator dc-1GHZ ( )

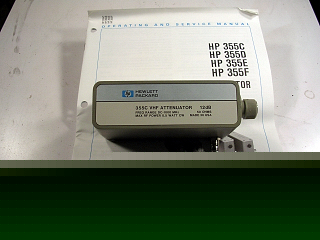

New agilent 355C step attenuator dc-1GHZ ( )
The Agilent 355C dc to 1000 MHz manual step attenuator provides precision step attenuation in 1 dB steps from 0 to 12 dB. Attenuator sections are inserted and removed by cam-actuated microswitches which keep lead lengths short. This design minimizes stray capacitances and inductances, and keeps phase shift to a minimum. The Agilent 355C is a compact and rugged unit in which the component parts are rigidly positioned and well-shielded so that neither stray pickup nor signal leakage is a problem. It may be connected with the 355D in series to provide precision attenuation in 1 dB steps from 0 to 132 dB. Either terminal may be connected as input or output.
Attenuation Range: 0 to 12 dB, 1 dB steps
Insertion Loss at 0 dB: 0.2 dB + 2.3 dB/GHz
Maximum SWR: 1.2 to 250 MHz, 1.3 to 500 MHz, 1.5 to 1 GHz
Repeatability Life: 0.03 dB maximum, 0.5 million cycles per section
Maximum RF Input Power: 0.5 W (average), 350 W (peak)
THIS UNIT IS NEW (NIB) AND IT COME WITH THE OPERATING AND SERVICE MANUAL. WE OFFER A DOMESTIC DOA WARRENTY. LET US KNOW IF YOU HAVE ANY QUESTIONS. THANKS FOR LOOKING.
