Fm narrow band transceiver 433MHZ
Please take a look at my other items as I have a number of FM module types for sale

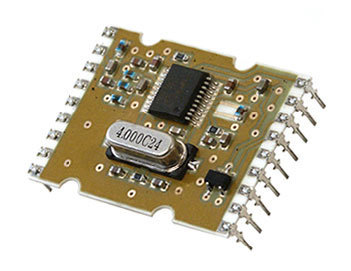

DescriptionThe RXQ1 radio transceiver modules provide reliable wireless communications for the transfer ofdata at rates of up to 20 K baud. The unique features of narrow band operation and user channel selectioncombined with excellent interference rejection make them an ideal choice for next generation applications.Operating within the 433.92MHz band the module can operate in two narrow band channels; 433.92 MHzand 434.33MHz. The modules use a crystal controlled design which provides narrow band performance whichis far superior to other wideband SAW based designs.
The RXQ1 provides a basic Radio transceiver.Possible applications include one-to-one and multi-node wireless links in applications including car andbuilding security, EPOS, inventory tracking, remote industrial process monitoring and computer networking.Because of the small size and low power requirements, the module is ideal for use in portable, batterypoweredapplications such as hand-held terminals.
pdf data sheet is : /datasheets/56730.pdf
