> 10" bison 3 jaw "settru lathe chuck + adapter plate
10" bison 3 jaw "settru lathe chuck + adapter plate

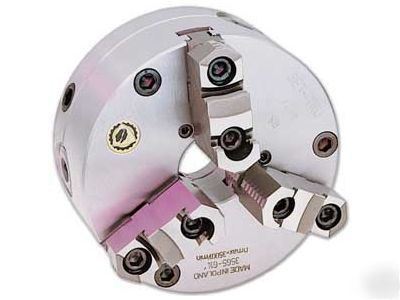

10" Bison Chuck 3 Jaw "SetTru" Fine Adj Lathe Chuck + One Adapter Plate & Chuck Package
10" Bison Chuck 3 Jaw "Set-Tru" T.I.R. 0.0004" With 4 Fine Adjustment Screws , Scroll Chuck, Forged Steel Body, 3-pinion Design.
1 full setl of two-piece reversible jaws hard and master jaws.
1 Set of fine adjustment screws
* Jaws closed Min .20 - Max open 4.65
* Eliminates the need for spring collets.
* 4 micro adjustment screws provide 0.0004" T.I.R. repeatability.
* Extremely high gripping concentricity.
* 2-piece hard top & master hard jaws are American Standard Tongue & Groove. 3 Total Jaws included + 3 masters.
* Chuck body made of high quality Forged steel, is safe at high lathe speeds.
* Forged Scroll fully hardened with thread flanks ground on both sides for longer life and higher accuracy.
* Hardened and ground bushings are pressed into the pinion seats.
* 3 pinions are hardened and ground
* Each chuck is balanced within fine limits.
* The Life of Bison "Set-Tru" chucks is approximately 2.5 times longer than universal chucks.
10" Bison "Set-Tru" Chuck Accepts Bison Adapter Plates Only.
As part of this Selling set. Which 1 Fits Your Spindle Nose?
10" Bison "Set-Tru" A-Type Adapter plate
10" Bison "Set-Tru" D-Type Adapter plates
3 D1-Type adapters to choose one from.
D1-4 # of studs 3 Stud Diameter 5/8"
D1-5 # of studs 6 Stud Diameter 3/4"
D1-6 # of studs 6 Stud Diameter 7/8"
10" Bison "Set-Tru" Threaded Adapter plates
1 Threaded Types to choose one from
