Keyence cz-K1P pnp rgp fiber op proximity sensor 12-24V

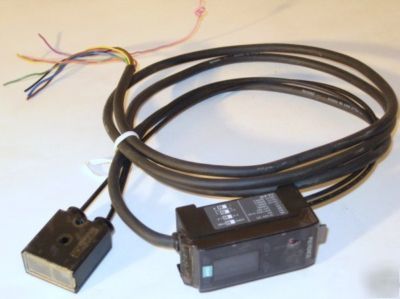

This listing is for a fiber optic proximity sensor.
* Listed Power Specs: 12VDC - 24VDC (12 - 24 Volts DC) (12V - 24 V DC) (12 - 24 VDC)
* Desription: Proximity Sensor
* List Price: Approximately $580
RGB Digital Fiber Optic Type (CZ Series) Amplifier Specifications
* Light source Red LED, Green LED, Blue LED
* Response time 300 s/1 ms (switch-selectable)
* Operation mode Match output: Turns on when target colour matches registered colour. Mismatch output: Turns on when target colour is different from registered colour. (switch-selectable)
* Timer function OFF-delay timer (40 ms)/Timer OFF (switch-selectable)
* Control output NPN or PNP 40 VDC max. (100 mA max.), Residual voltage: 1.0 V max.
* Power supply 12 to 24 VDC 10%, Ripple (P-P): 10% max.
* Ambient light Incandescent lamp: 5,000 lux max., Sunlight: 10,000 lux max.
* Ambient temperature -10 C to +55 C (14 to 131 F), No condensation
* Relative humidity 35 to 85%, No condensation
For further details, please visit Keyence's product page at http:// /products/sensors/fiberoptic/cz/cz_specifications_1.php
