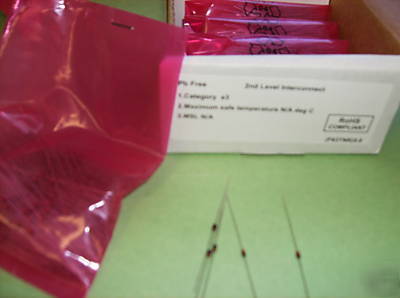

1N4148 philips high speed diodes package of 500 pieces
PACKAGES OF 500 PIECES PER PACKAGE
The 1N4148 is a standard small signal silicon diode used in signal processing. Its name follows the JEDEC nomenclature. The 1N4148 is generally available in a DO-35 glass package and is very useful at high frequencies with a reverse recovery time of no more than 4ns. This permits rectification and detection of radio frequency signals very effectively, as long as their amplitude is above the forward conduction threshold of silicon (around 0.7V) or the diode is biased.
* VRRM = 100V (Maximum Repetitive Reverse Voltage)
* IO = 200mA (Average Rectified Forward Current)
* IF = 300mA (DC Forward Current)
* IFSM = 1.0 A (Pulse Width = 1 sec), 4.0 A (Pulse Width = 1 uSec) (Non-Repetitive Peak Forward Surge Current)
* PD = 500 mW (power Dissipation)
* TRR < 4ns (reverse recovery time)
Hermetically sealed leaded glass SOD27 (DO-35)
High switching speed: max. 4 ns
Continuous reverse voltage: max. 100 V
Repetitive peak reverse voltage: max. 100 V
Repetitive peak forward current: max. 450 mA.
The 1N4148 and 1N4448 are high-speed switching diodes
fabricated in planar technology, and encapsulated in
