> 16AMP power relay+base 230VAC coil [spdt changeover 16A
16AMP power relay+base 230VAC coil [spdt changeover 16A
Model nos. RELAY: Finder 46.61.8.230.0040 [Base: Omron P2RF-05-E]
Rating: 16amp 250Vac MAXIMUM [Ith rating]
Output Contacts: SPDT = SPCO [single pole changeover function. Three output terminals COM, NC, NO]
Control input [coil rating]: 230Vac
Complete with Din Rail mounting base. [fits to standard 35mm "consumer unit" style din rail or can be panel mounted with a single M3 screw.]
Complete specifications at the bottom of this page [scroll down to view]

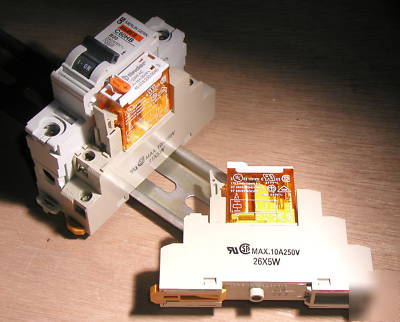

Merlin Gerin MCB is to give an idea of scale and dimensions only.
i.e. the Relay can be mounted easily alongside regular MCB's without any modification of the rail or enclosure. It will take up one MCB's worth of rail space. 15.4mm width
The MCB and rail are not included in the sale.
Connections: Screw clamp terminals
Other features: Manual TEST BUTTON. Visual indication of operation.
CONDITION: All relays are BRAND NEW [taken from a box of ten]. Bases from my collection. Some new, some system pulls - all immaculate.
I post almost all items sameday or within one working day. But let me know if you do need the goods urgently and I will treat them as an extra special priority.
[For heavier or more valuable consignments service may be uprated to Parcelforce with tracking and 150 compensation.]
Boring Safety and Legal considerations [please read before purchase]:
Electrical installation and servicing work should always be carried out by a competent and qualified electrician. The information given above is presented as a description of the item and it's suggested use. It is not in any regard a guide to installing this item. Please refer to the given manufacturers pdf file when making decisions relative to the your intended application.
"WARNING" - All equipment is sold as component parts requiring correct installation for use. Misuse or misapplication of products may cause explosion, personal injury, property damage or trauma to hamsters or other small mammals. All of the products offered are intended for users having adequate technical expertise. It is important that you analyze all aspects of your application and review the technical information concerning the product or system. Due to the variety of operating conditions and applications for these products or systems, the user, through its own analysis and testing, is solely responsible for making the final selection of the products and systems and assuring that all performance, safety and warning requirements of the application are met. Etc..Yadda, Yadda!!
In the rare instances where there is such a problem I am always more than happy to provide a full refund or replacement goods or where the item has been lost or damaged in transit I will pursue a claim against the carrier. I may in some unusual cases ask for proof of genuine complaint or for the goods to be returned before refund is given. Wherever a replacement is available the goods will be replaced.
* Contact Configuration:SPDT
* Max Contact Voltage AC:250V
* Max Contact Current AC:25A
* External Length / Height:32.8mm
* Max Operating Temperature:70 C
* Min Temperature Operating:-40 C
* Type:Lockable test button + mechanical indicator
* Approval Bodies:CSA, GOST, RINA, VDE
* Approval Category:UL Recognised
* Contact Current Rating:16A
* Dielectric Voltage Contact to Contact:1000V ac
* Max Switching Voltage AC / DC:440V ac
* No. of Electrical Operations:100000
* No. of Mechanical Operations:10000000
* Terminal Type:4.8mm x 0.5mm
* Termination Method:Faston 187 - 4.75 x 6.5mm
