Shop fox vertical mill M1006

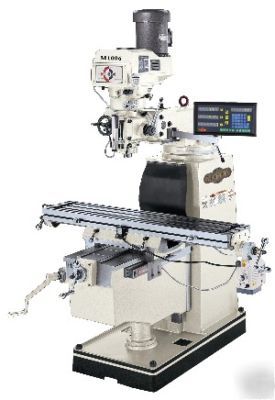

Shop Fox M1006 Vertical Milling Machine
Our largest mill has all the features necessary for an industrial shop: a powerful 3 HP, 3-phase motor with variable speeds from 80 to 4250 RPM, a 10" x 54" table, longitudinal power feed, and a digital readout. The 3 axis digital readout has a 5 m resolution, machine error compensation, absolute/incremental coordinate display, arc/line of holes/angled cut functions, and 199 user defined datum points. Rest assured, this machine has the capability to complete the hardest jobs with extreme precision and repeatability.
* Quill feeds/spindle rev.: .0019", .0035", .0058"
* Auto stop w/micro adjustable stop
* Hardened & ground table surface
* Chrome plated, precision-ground quill
* Adjustable micrometer quill depth stop
* Motor size: 3 HP, 220V, 3-phase, TEFC
* Table travel (longitudinal): 33-3/4"
* Table travel (cross): 15-1/2"
* Max. dist. spindle to column: 24-1/2"
* Max. dist. spindle to table: 17"
* Head swivel: 90 both ways
* T-slots: 3 on 2-1/2" centers, 1/2" stud
* Variable speed range: 80 - 4250 RPM
New Display Machine Only One Available.
