> Eg&g rotron regenerative blower # EN808BA72XL

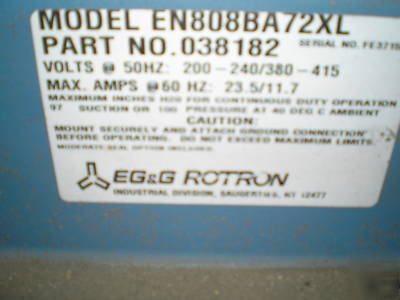

Eg&g rotron regenerative blower # EN808BA72XL
Sealed Regenerative Blower w/Explosion-Proof Motor
Manufactured in the USA ISO 9001 compliant
Standard motor: 7.5 HP, explosion-proof
Cast aluminum blower housing, cover, impeller &
manifold; cast iron flanges (threaded); teflon lip seal
UL & CSA approved motor with permanently
sealed ball bearings for explosive gas
atmospheres Class I Group D minimum
Quiet operation within OSHA standards
International voltage & frequency (Hz)
Chemical duty, high efficiency, inverter duty
Various horsepowers for application-specific needs
Corrosion resistant surface treatments & sealing options
Remote drive (motorless) models
Slip-on or face flanges for application-specific needs
(See Catalog Accessory Section)
Filters & moisture separators
Pressure gauges, vacuum gauges & relief valves
Switches air flow, pressure, vacuum or temperature
External mufflers for additional silencing
Air knives (used on blow-off applications)
Variable frequency drive package
MODEL EN808BA72MXL EN808BA86MXL CP808FY72MXLR
Motor Enclosure Shaft Material Explosion-proof
CS Explosion-proof CS Chem XP SS
Motor Nameplate Amps 18.6 9.3 7.4
2 Class B - Pilot Duty Class B - Pilot Duty
XP Motor Class Group I-D, II-F&G I-D, II-F&G
0.75" NPT CONDUIT CONNECTION AT 12 O CLOCK POSITION
except add Chemical Processing (CP) features from catalog inside front cover
Rotron motors are designed to handle a broad range of world voltages and power supply variations. Our dual voltage 3 phase motors are
factory tested and certified to operate on both:
208-230 /415-460 VAC- 3 ph-60 Hz and 190-208/380-415 VAC-3 ph-50 Hz. Our dual
voltage 1 phase motors are factory tested and certified to operate on both:
104-115/208-230 VAC-1 ph-60 Hz and 100-110 /200-220
. All voltages above can handle a 10% voltage fluctuation. Special wound motors can be ordered for voltages outside our
Maximum operating temperature: Motor winding temperature (winding rise plus ambient) should not exceed 140 C for Class F rated motors
or 120 C for Class B rated motors. Blower outlet air temperature should not exceed 140 C (air temperature rise plus inlet temperature).
Performance curve maximum pressure and suction points are based on a 40 C inlet and ambient temperature. Consult factory for inlet or
ambient temperatures above 40 C.
Maximum blower amps corresponds to the performance point at which the motor or blower temperature rise with a 40 C inlet and/or
ambient temperature reaches the maximum operating temperature.
Specifications subject to change without notice. Please consult your Local Field Sales Engineer for specification updates.
echnical and Industrial Products, Kent, OH 44240 e mail: ****@ametek.com internet:

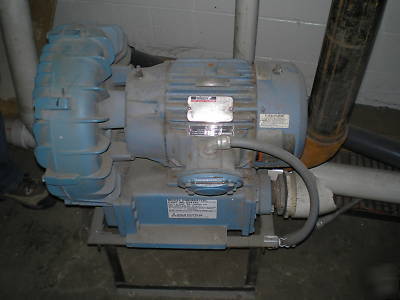

USED BLOWER IN GREAT CONDITION
