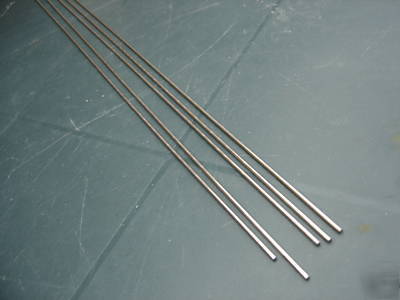

Brazetec 5507 silver solder / ag 55% / 2MM dia
DIN EN 1044 AG 103 (L-Ag55Sn acc. DIN 8513)
Nominal composition [wt.-%] Ag 55; Cu 21; Zn 22; Sn 2
Permitted impurities max. [wt.-%] Al 0,001; Bi 0,030; Cd 0,010; P 0,008; Pb 0,025; Si 0,05
Melting range approx. 630 - 660 C (DIN EN 1044)
Working temperature approx. 660 C
Tensile strength acc. DIN EN 12797 with S235: 350 MPa; with E295: 430 MPa
Electrical Conductivity approx. 9,4
Operating temp. of brazed joint max. 200 C (without loss in strength)
BrazeTec 5507 is a low melting silver based brazing alloy with excellent flow characteristics. It can be
used for brazing any steels, copper and copper based alloys as well as for nickel and nickel based
alloys. It can be used for brazing with flame or induction brazing procedures.
Typical applications are found e.g. in the electric and automotive industry.
