Esd pdd-8ACI access control with fire interface module

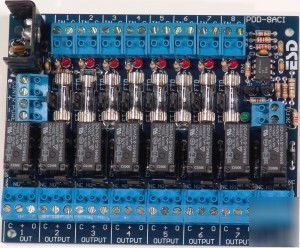

PDD-8ACI Power Distribution for Access Control with Fire Interface module
Controls and Distributes Power with 8 Control Relays with an EOL Fire trigger Interface
Power Interface for Access Control, CCTV, Fire, HVAC, Elevator, and general low voltage system control
8 Heavy duty Relays with individual Inputs and Status LED s
Each Relay Input can be Activated from Low Current Open Collector, Normally Closed or Normally Open Switch
EOL End of Line Resistor Fire Interface Master Trigger de-energizes all Output Relays that are Enabled to Unlock Doors or Shut Down Air Systems
Universal 12 24vdc power input
Available with Fuses or PTC Circuit Breakers
Each Output may be Individually Configured for:
Fire Trigger (FT) Enabled or (FTD) Disabled
FUSE model can provide optional Dry Contacts
N/O or N/C Option Configures the Relay Switched Output
Each Output 1-8 has a protected, continuous Output and a relay controlled Output
Outputs on PTC models are Class II power limited
Output Power can be AC or DC up to 32v
TRG LED Green Indicates Trigger Status
Control Power and Main Lock Power may be Isolated
(Separate Power Supplies) at Users Option
All Terminal Blocks are Pluggable by Channel & Function
