> Atten ADS1102CA 100MHZ digital oscilloscope dso ADS1102
Atten ADS1102CA 100MHZ digital oscilloscope dso ADS1102

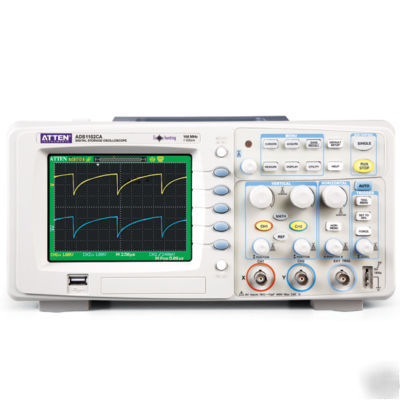

ATTEN ADS1102CA 100Mhz Digital Oscilloscope DSO ADS1102
The most powerful portable digital oscilloscope at present, the perfect combo with top performance and powerful function, which represent the highest level presently available in digital storage oscilloscopes.
ADS1000 series digital storage oscilloscopes combine mature and steady hardware configuration, high-powered digital signal processing technology and functionality concepts with a mainstream display interface and the operation panel. In our design we did not attempt to match the specifications and usability of other comparable products currently on the market, but rather to exceed them in every respect, often outperforming same level products internationally.
The ADS1000 series, with its intuitive logical and convenient user interface and attractive price is very affordable.
Dual channel - channel bandwidth: 25MHz, 60MHz, 100MHz, 150MHz
The volume exquisite and it is convenient for carrying
Use Colored TFT LCD, the waveform display is clearer and stable
The real time sampling rate is 500MSa/
Memory depth of ADS1000 is 4K and that of ADS1000M is 2M
Trigger Modes: Edge, Pulse, Video, Slope, Alternative and Delay trigger modes
Front and Back USB Host/Device, GPIB
Unique Digital Filter function and Waveform recorder function
Thirty two parameters Auto measure function
Cursor measure covers Manual mode, Track mode and Auto mode
Channel waveform and it's FFT waveform display on split screen
Pop-up Menu display pattern is more convenient for users using it
Multiple Language User Interface
Support multilingual online help
Single Channel: 2M; Double Channels: 1M/CH
12 divides full screen display
Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean, Vrms, Crms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Freq, Period, Rise time, Fall Time, +Width, -Width, +Duty, - Duty, BWid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Window: Hanning, Hamming, Blackman Rectangular
Off, 1sec, 2sec, 5sec, Infinite
Classical, Modern, Tradition, Succinct
Simplified Chinese, Traditional Chinese, English, Arabic, French, German, Russian, Spanish, Portuguese, Japanese, Korean
Support USB flash drive storage
Support PictBridge compatible printers and PC Remote control
(1:1, 10:1) Probe x 2, EasyScope Computer Software System, Power Cord, USB Cable, User Manual
GPIB Communication Module, Serial Interface Communication Module, Pass/Fail Interface Module
ADS1000 series products have rich trigger modes: Edge, Pulse, Video, Slope, Alternative and Delay trigger mode, which will satisfy with users more extensive needs. Alternative trigger mode is usually used to observing two non-correlated signals at the same time and users can select different trigger mode for two channels, which is a kind reproduction that analog oscilloscope function in the digital oscilloscope.
FFT WAVEFORM SPLIT DISPLAY FUNCTION
FFT waveform and its Channel waveform can display on split screen at the same time. In split display mode, the screen is divided into two parts and each part is divided eight divides in vertical direction. That is similar to under the entire screen pattern simultaneously to observe two waveforms. This way will make users observe waveforms to be clearer and convenient.
