11" x 18" hardinge model hlv-h super precision lathe

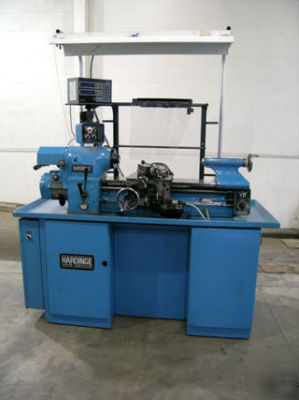

(1) USED - 11" X 18" HARDINGE MODEL HLV-H SUPER PRECISION HIGH SPEED TOOL MAKERS LATHE*
Spindle Capacity 5C Collets - Round 1-1/16"
Variable Spindle Speeds 125 - 3000 RPM
Carriage Power Feed Range 5/16" - 7 IPM
Cross Slide Power Feed Range 3/16" - 4 IPM
Tailstock Spindle Travel 3-3/4"
Tailstock Spindle Taper No. 2 MT
Lead Screw Diameter 1" - 8" Thread
Range of Threads (27) 11 - 108 TPI

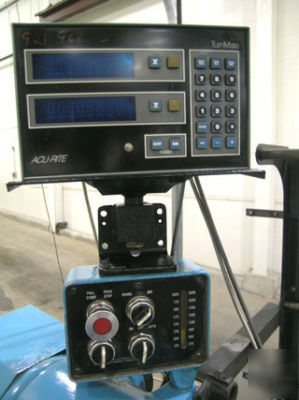

Accu-Rite Two Axis Digital Readout
Direct Reading Spindle Speed Indicator and Controls
Independent Electric Variable Power Feed Drive for Carriage and Cross Slide

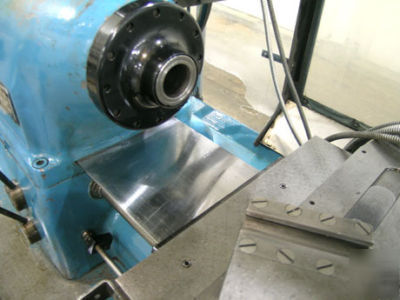

Lever Operated 5C Collet Chuck and Collets
