Metrotech 9890 rlxt triple frequency line locator

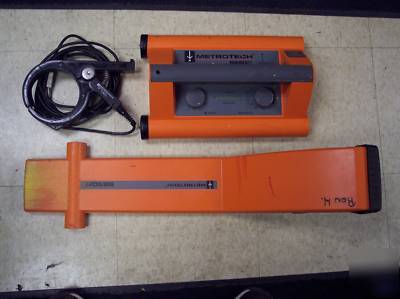

Used, Metrotech 9890 RLXT Triple Frequency Line Locator.
* Automatically determines best locating frequency for your line.
* The ability to simultaneously transmit in all three active frequencies.
* Three Active Frequencies 982Hz,9.8KHz and 82KHz.
* Low, Medium and High Power Output options allow you to control the power output.
* Distance sensitive left/right visual and Audio Guidance, it is possible to locate with your eyes closed.
* Automatic Gain Adjustment, you don t have to waste time tuning the sensitivity.
* Manual Gain over ride feature is used to identify ghost signals.
* Current Measurement, indicating when you stray to another pipe or the pipe has forked.
* Single Button Push for Depth measurement to center of pipe in cm down to 600cm.
* Weather-resistant, tough and lightweight 2.35KG.
* Loop Resistance Reading Confirms you are transmitting a traceable signal.
* Visual and Audible Distance Sensitive Left/Right Guidance .
* Easy-to-read display with a back light function for locating in poorly lit areas.
* Rechargeable Transmitter Batteries. NOT Included.
* Metallic water and gas pipelines.
* Electric cables, cables and tracer wires.
* 3 Active Frequencies for Direct Connect and Inductive Locating:
1. 82KHz (High) for locating street light cables and metallic pipelines with insulated joints or non-conductive fittings.
2. 9.8KHz (Medium) for locating pipelines with cathodic protection, coated pipes, uncoated pipes (depending on condition), power and telephone cables.
3. 982Hz (Low) for locating long pipelines with good coatings, trunk cables and accurate pipe and cable location in areas congested with multiple services.
1. 60Hz for Locating Buried Electric cables that are drawing current.
2. 14 22KHz for blind Searches
