Cnc vertical machining center vmc 175B fanuc $ reduced

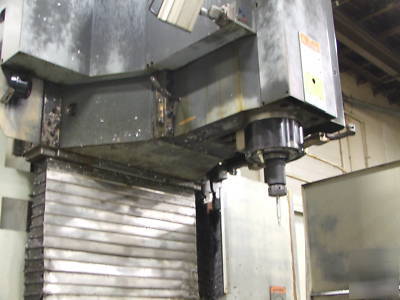

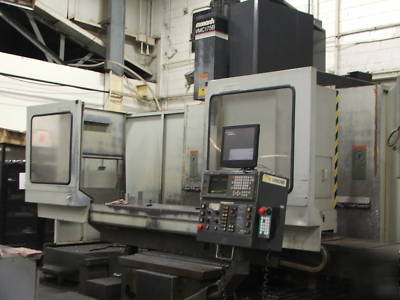

You are invited to purchase or "MAKE YOUR BEST OFFER" on a CNC VERTICAL MACHINING CENTER being a MONARCH VMC 175 B with FANUC 16M CONTROLLER with the following specifications:
220/460 Volts, 3 Phase, 60 Cycle (transformer included)
Table Cross Travel (X-Axis).......................76
Vertical Spindle Travel (Z-Axis).................44
Table Longitudinal Travel (Y-Axis)............30
Distance from Table Top to Spindle............5 - 49

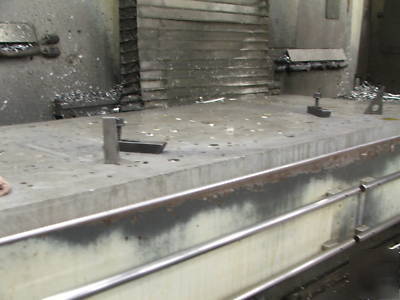

Clamping Area...........................................84.5 x 30
Maximum Table Load (Even).....................6000 lbs.
T-Slot Spacing............................................11/16 x 6
Spindle Size................................................3.346
Spindle Taper..............................................CAT 50
Spindle Speeds............................................30 - 6000 rpm
Spindle Ranges............................................2 (inf. Variable)
Spindle Motor..............................................25 / 30 hp.
Constant Torque..........................................6900 in.lb @ 230
Rapid Traverse.............................................600 in/min
Cutting Feeds (X,Y,Z)..................................0.01-400 in/min
Number of Tools...........................................30
Tool Change Time........................................3.5 sec.
Maximum Tool Diameter..............................6
Maximum Tool Length.................................16
Maximum Tool Weight.................................25 lbs.

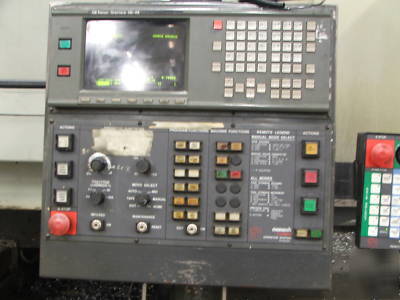

Type.......................................................Fanuc 16M
Circular Interpolation.............................[XY],[XZ],[YZ]
Helical Interpolation...............................[XY] with [Z]
Tapping..................................................Rigid (G84)
Program Storage.....................................123,000 characters
DNC.......................................................DLoG Dnet II
Maximum Positioning Error...................0.0001
Maximum Repeatability..........................0.00006
High Pressure (1000 psi / 5 gpm) Thru Spindle Coolant
Renishaw Automatic Workpiece Measurement Probing
Renishaw Automatic Tool Length Probing System
HPM 12 Diameter Full Contouring Fourth Axis Table
This Monarch CNC Vertical Machining Center VMC 175 B with Fanuc 16 M Control is known to be in a "good" working order and can be inspected in Ohio by calling (***) 882 2765 for appointment.
WE INVITE YOU TO SEND US INFORMATION CONCERNING ANY USED EQUIPMENT YOU WISH TO LIQUIDATE AS WE WILL TRY TO SECURE A FAIR MARKET VALUE FOR THE ITEMS AND EXPECT VERY LOW COMMISSIONS FOR OUR SERVICES. CONTACT US AT "****@maysvilleky.net" (gt)
