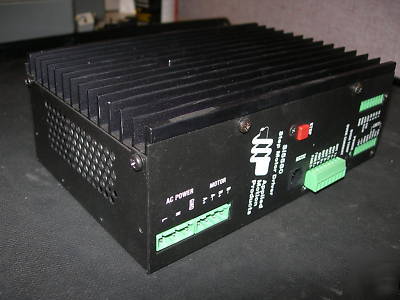

Applied motion products step motor driver SI5580
The Si5580 includes Applied Motion Products' , Microsoft Windows based, Si software language for quick set up and ease of use. The Si is ideal for stand-alone operation. For more experienced users, with software development expertise, the Si5580 also comes with Applied' s Si Command Language (SCL) programming instruction set. SCL allows for control of the Si drive from a host PC or PLC thus permitting the user to perform a variety of motion, I/O tasks and system status retrieval via the host.
Multiple axis applications are handled by our SiNet Hub Programmer, which gives you the ability to control up to 8 Si drives, either stepper or servo on the same hub. Not only can you coordinate up to eight motors, the hub also has access to the inputs and outputs of all the drives, providing your program with up to 64 inputs and 24 outputs. You can also use Applied' s MMI which allows the machine operator to enter specific motion commands. Factory set to operate at 110-volt input; the Si5580 can be set by the user to operate at 220-volt input by a simply switch selection.
Pluggable screw terminal blocks are provided for the I/O, motor and AC power inputs. Mating connectors, programming cable with computer interface connector as well as all operating software are provided with each Si drive.
The Si5580 is both CE and TUV compliant."
For specifications please visit:
HERE Item is used but in good physical condition.
~9 Pounds in a box with packaging materials
