4 pin stepper motor driver controller - pc interface

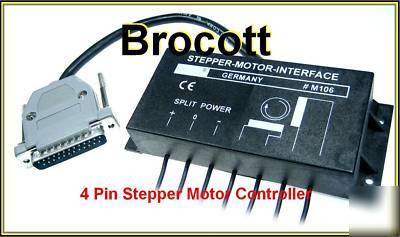

High Quality 4 Pin Stepper Motor Controller
4 Pin Stepper Motor Controller
See our 4 way splitter module (M108) as an add-on to this module, which allows you to control up to 4 stepper motors. An M106 will be required for each stepper motor.
For controlling a 4 pin / wire bipolar stepper motor 3...17 VDC, max. 2 amps. A double power pack (split power supply) is required for the current supply. The module is connected to a standard LPT port onthe PC or Laptop. The module will allow either manual control via the PC keyboard or via the software with an automatic program flow. With interface switch (M108) it is possible to operate up to 4 step motors simultaneously via individual step motor interfaces respectively. All programmable with the supplied software.
The enclosed software will allow you to control up to 4 motors individually or simultaneously which gives full multi axis control.
* Operating voltage: 4...17 V split power supply. Double DC voltage, dependent on the connected motor (always 1 V more than the motor requires).
* Motor connection: 1 bipolar stepper motor 4 connections 3...17 VDC max. 2 A
* Connector: 25 poles for connection to the PC printer port LPT1
* Dimensions: approx. 120 x 50 x 24 mm
