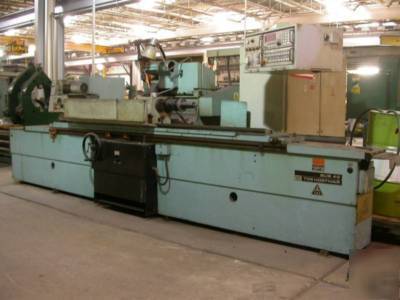

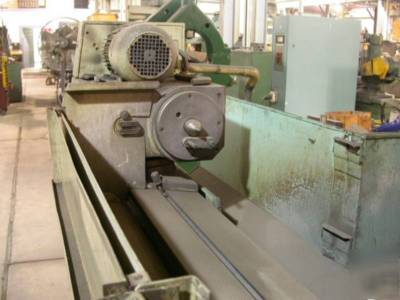

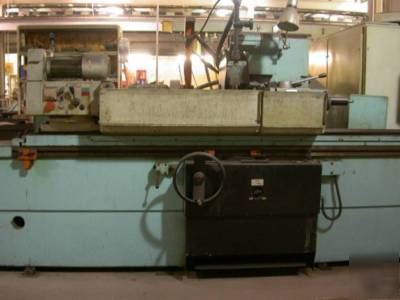

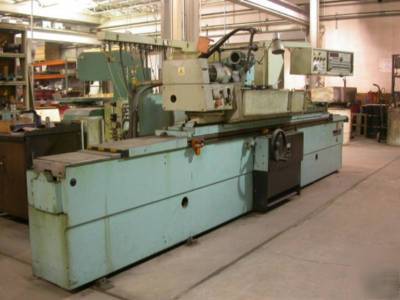

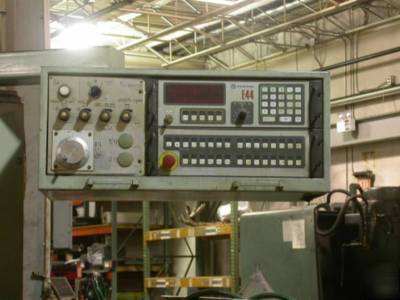

Tos bub 40/2000 id/od universal grinder
UNION/FADAL BFT105, S/N:193JU31 HBM (2993)
MAX SWING............................16"
SWING DIA. IN OPEN REST...... .394-4.724
MAX CC DISTANCE......................79"
WORKHEAD SWIVEL......................90 DEGREES
WORK SPINLE NOSE.....................# 5 MORSE TAPER
TAILSTOCK BARREL TRAVEL..............1.574"
TAILSTOCK TAPER......................MORSE #5
WORK SPINDLE NOSE....................A1-5
WHEELHEAD SWIVEL.....................-15 DEG, +45 DEG
MAX TABLE MOTION.....................79"
TABLE SPPED INFINITELY VARIABLE......0.164-16.404 FT/MIN
TABLE TRAVERSE SPEED RATE............19.685 FT/MIN
DRESSING SPEED.......................0.164-16.04 FT/MIN
TABLE SWIVEL.........................+6 DEG- -3DEG
WHEEL SPEEDS.........................2 1720,1980 RPM
WHEEL DIMENIONS......................20" X 3" X 8"
MAX WEIGHT BETWEEN CENTERS...........771 LBS
MACHINE WEIGHT.......................14,210 LBS
***SPECIFICATION SHOWN ARE TO BE
USED AS A GUIDELINE ONLY. IT IS
CHECK SIZES AND FEATURES BEFORE
PURCHASING. WE WILL NOT BE RESPONSIBLE
