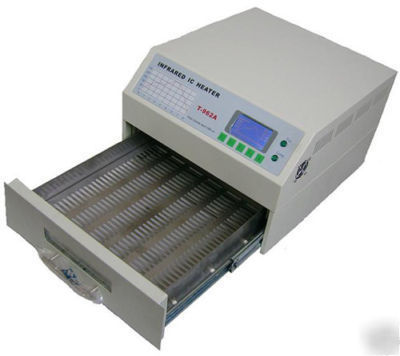

T962A infrared smd & bga ic automatic large reflow oven
T962A Initial Set-Up and adjustments
1. Place the T962A on an appropriate level, insulated work area.
3. Allow at least 20mm between the T962A and its surroundings for heat protection.
6. Locate and press the power on button, the LCD will light, the T962A will log on,.
Press F4 to Select English Menu In the main menu
Wave six & seven & egiht, use the same with The PCB circuit board returns to fix etc.
Wave seven & egiht, use the same with the wave cycle set-up by yourself.
(4) In the process, you can press S to force to stop; When finished, the exhaust fan will work automatically to cool, you also can force to turn on the exhaust fan.
c. There isn t any way to do smoke evacuation, please put the machine in a ventilated condition to avoid poisoning(when the solder paste volatilization).
d. The insulations in the machine had been treated strictly. Do not take apart the machine until there is any safety precautions
