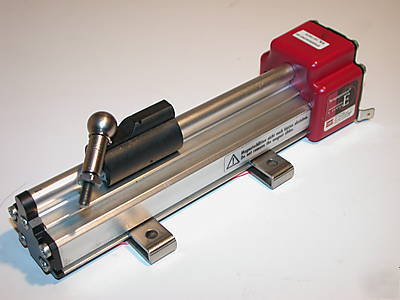

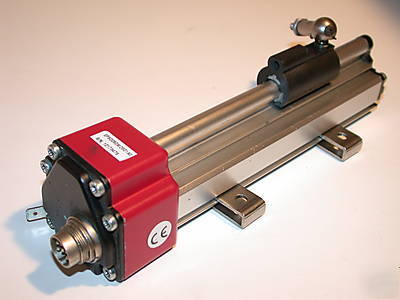

Temposonics series e positioning sensor EPS0050MD601A0
TEMPOSONICS SERIES E POSITIONING SENSOR EPS0050MD601A0
Contactless Sensing with Highest Durability
Rugged Industrial Sensor, EMC shielded and CE certified
High-Precision: Linearity better 0,02 %
- Start / Stop + Sensor-Parameter Upload
Digital Temposonics-EP is equipped with a start/stop output. The sensor requires a start signal from an external indicator in the control system and returns a signal corresponding to the magnet position. The time elepsed between the two signals is proportional to the magnet position, i.e. to the displasement. Time measurement is by the indicator and used for calculating the position value.
In a Temposonics transducer, a torsional strain pulse is induced in a specially designed magnetostrictive waveguide by the momentary interaction of two magnetic fields. One field comes from a moving magnet, which passes along the outside of the transducer tube, the other field from a current pulse launched along a wire inside the waveguide. The interaction between these two magnetic fields produces a strain pulse which travels at sonic speed along the waveguide, until the pulse is detected at the head of the transducer. The position of the moving magnet is precisely determined by measuring the elapsed time between the launching of the electronic pulse and the arrival of the strain pulse. As a result, accurate non-contact position sensing is achieved with absolutely no wear to any of the sensing elements.
For additional information about Magnetostriction and the Temposonics product line, visit them on the Internet:
http:// .au/products/displacement/mts/temposonics/pdf/550739.pdf
http://www.scn.se/upload/20071008_175925_2.pdf
I will fully guarantee this item.
