Scale master ii digital measuring system - model 6325
Advanced Digital Plan Measure with Optional PC Interface
The PC Interface is fully compatible Windows 98, 2000, NT and XP. Transfer any rolled values from the Scale Master II directly into commonly used spreadsheets or estimating programs saving countless keystrokes and time. Reduce the potential for costly transcribing errors.
* Complete Take-offs with speed and accuracy
* Create permanent record of dimensions and values
For Contractors, Estimators, Engineers Architects, Landscapers, Pipeline Builders, Excavators, Concrete Contractors, Electrical Contractors, Plumbers, HVAC, Fencing Specialists, Telecommunications, Cable System Contractors, Pavers.
* 91 Built-in Scales: 50 Imperial (Feet-Inch) and 41 Metric for maximum versatility in architectural, engineering and civil/map scaling.
* Eight "Custom" Scales: Four each for Imperial and Metric units, lets you roll or define any scale, even from plans that have been reduced, enlarged or are out of scale. Permanently store the new scale for future use.
* Dedicated Length, Width and Height Keys: "Roll", store and recall L, W & H values and instantly finds rectangular Areas and Volumes.
* Lock Switch: Lock in the mode and scale to prevent changing them while rolling.
* Auto Count Feature: Automatically "counts" how many times a pre-set distance has been rolled. Great for stud counts, columns, fence posts, outlets, fixtures or any other regularly spaced items.
* Count While Rolling: Push-button counter lets you count items as you roll.
* Constant (+K) Key: Allows you to add (or subtract) a constant value to the distance measured. Great for "drops" and add-ons.
* Wide Range of Dimensional Units: Use best-suited units to fit your work: Decimal Feet, Feet-Inches, Decimal Yards-Feet-Inches, Miles, Nautical Miles, Acres, Millimeters, Meters, Kilometers, and Hectares most available in square and cubic formats.
* Subtract Key: Allows you to easily deduct rolled distances.
* Accumulating (M+) Memory: Allows easy totaling of dimensions or counts perfect for multi-page plans.
7.2 x 1.6 x 0.6 (182 x 41 x 15mm)
2.4 oz. (68.04g) incl. Case
Two 3-Vol Lithium Batteries (Incl.)
7-Digit LCD with Full Annunciators
10 Digits Internal Math Accuracy; 99.75% Measuring Accuracy
7 Digit Main Display: 3 Digit Count Display
* Easy-to-Follow User s Guide
* Long-life Lithium Batteries (2) CR-2430
* 10 foot (3.04 Meter Interface Cable with 9-pin Serial Port Connector
* PC Software SM2 Connect Interface Software for Windows (Compact disk only)
* Easy-to-follow written Installation and Operation Guide
* Windows 95, 98, ME, XP or 2000

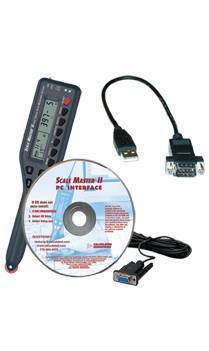

* Scale Master II Digital Plan Measure
* Available Serial of USB port
