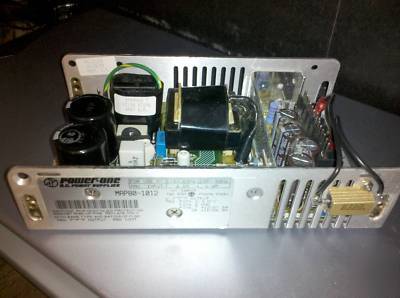

Power-one MAP80-1012 single output power supply 12V 15V
This used power supply was pulled from a working instrument and is in good condition.
SWITCHING POWER SUPPLIES, SINGLE OUTPUT, 80 WATTS, 12V @ 7.5A OR 15V @ 6A
* Input transient & ESD compliance to EN61000-4-2 -3 -4
* Meets EN55022, Class B limits
* TTL compatible Power Fail Signal
* Greater than 175,000 Hours MTBF
* Metric and SAE mounting inserts
* EN61000-4-2 ESD Level 4 (8 KV): All Map Products
* EN61000-4-3 Radiated Level 3 (10 V/M): All Map Products
* EN61000-4-4 EFT/B Level 3: All Map Products Except for MAP130-1005, MAP130-4003, MAP130-4010 Which Meet Level 2
* EN55022 Conducted Class B: All Map Products Except for MAP30-1005, MAP40-3000, MAP40-3003 Which Meet Class A
* EN55022 Radiated Class B: All Map Products Except for MAP40-3000, MAP40-3003, MAP40-3500, MAP55-All Multiple Output Models, MAP110-1012/1024, MAP110-4001/4002/4003/4004/4010, MAP130-1005 Which Meet Class A
* Universal Input: 90-132 VAC or 175-264 VAC
