Pneumatic valve actuator triac controls 2R500S0 284B0

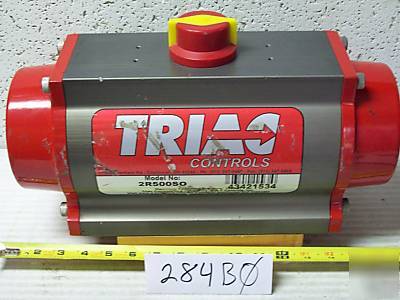

TRIAC CONTROLS PNEUMATIC ACTUATOR
YOU ARE LOOKING AT ONE (1) TRIAC CONTROLS PNEUMATIC ACTUATOR
TWO AIR CONNECTIONS/PORTS: 1/4" NPT FOR BOTH
NEW SURPLUS with a few very light scratches on them.
I have also tested each unit...work great!!!
THIS ACTUATOR IS DESIGNED TO OPEN AND/OR CLOSE A QUARTER TURN
VALVE (Ball Valve, Butterfly Valve, Plug Valve) WITH AIR.
IT IS SPRING RETURN THEREFORE YOU CAN HAVE FAIL SAFE OPERATION
IT CAN BE OPERATED IN BOTH FAIL OPEN OR FAIL CLOSE. DEPENDING ON HOW YOU MOUNT VALVE.

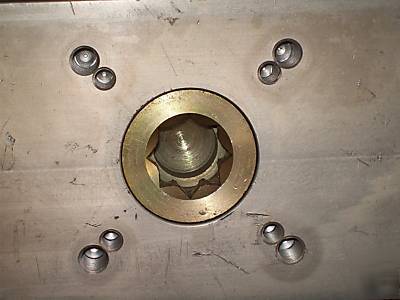

VALVE MOUNTING PAD ON BOTTOM OF ACTUATOR HAS AN INNER AND OUTER BOLTING PAD. MEASUREMENTS FOR MOUNTING PADS:
* (OUTER) 3-1/2" CENTER TO CENTER SQUARED
* (INNER) 2-7/8" CENTER TO CENTER SQUARED
(NOT INCLUDED) WILL BE NEEDED TO ATTACH YOUR VALVE TO THE ACTUATOR.
