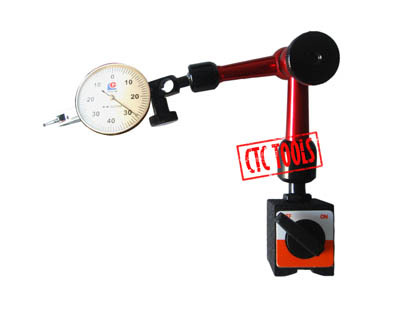

Micron dial test indicator gauge & magnetic base #D16
This Is A "Brand new" Precise Measuring Tool For Professionals And Hobbyists Demanding Ease Of Operation And High Quality Work Results.
* 1 Pc. Lever Arm Type Dial Test Indicator Gauge In Fitted Plastic Box
* 1 Pc. Magnetic Base With Hydraulic Arm
Dial Test Indicator Gauge
* Dial Graduation 0.01MM. Maximum travel +/-0.4mm
* Rotating Bezel For Zero Setting
* Universal Dovetail Adaptor on 3 Facets
* 6MM (1/4") & 8MM (5/16") Round Stem Adaptors
Magnetic Base With Hydraulic Arm* Sealed Hydraulic System. The Turning Of The Tension Knob Results In High Pressure In The Joints, Holding The Aluminium Arms Absolutely Rigid
* Multiple Holding Positions Through 360 Swivel Ball Joints With One Knob Locking System For Fast Set-Up
* Reduced Scale For work In Tight Areas
* Strong Magnet With On/Off Switch
* Quickly Attached To Any Magnetic Surface
* Two Magnetic Mounting Surfaces: Bottom & Back
* V-Shape On Bottom Surface For Firm Holding On Round Or Flat Surface
* 5/16 (8mm) Clamping Hole For Standard Indicator Stems
* Universal Dovetail Clamp For Dial Test Indicators
* Overall Reach: 7.5" (190mm)
* Base Size: 30mm (Width) x 37mm (Depth)
* Delivered In High Quality Anodized Finish
