> 150 ton C150 bliss single point gap frame press
150 ton C150 bliss single point gap frame press

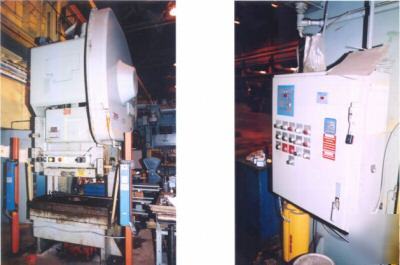

150 Ton C150 BLISS Single Point Gap Frame Press with Air Clutch, RGF Series, S/N H62255HP47560, new 1970
Capacity @ 1/4" above bottom: 150 tons
Crankshaft diameter at main bearings: 6 1/2"
Crankshaft diameter at crankpin: 9"
Stem hole in slide: 3 ?" diameter x 3 3/4: length
Bolster plate thickness: 4 1/2"
Distance floor to top of bed: 37"
15 H.P. 3/60/230-460 volt motor
PROJECTED FLOOR SPACE: 88" x 92" x 168"High
