Tdk uhv-6A 2700PF 30KV high voltage ceramic capacitor

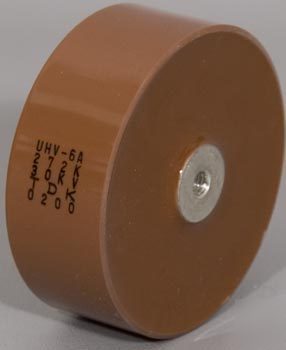

TDK UHV-6A 2700pF 30kV Ultra High Voltage Ceramic Capacitor, Class 2 High Dielectric
The UHV-6A is a class 2 high dielectric capacitor for DC 30kV Applications. TDK UHV series high voltage ceramic capacitors feature low dissipation and excellent voltage-capacitance characteristics using patented strontium titanate for dielectric material. They are epoxy-encapsulated to meet requirement of high voltage applications.
Operating Temperature Range: 30 to +85 CC
Rated Capacitance: 2,700 pF 10%
Capacitance Temperature Characteristics: Z5T:+22, 33%[+10 to +85 CC, 25 CC ]
Dimensions: 60mm Dia. x 22 mm Thick (26 mm thick including threads)
