Prescolite dbx-qc 6" downlight
In a continuing effort to offer the best product possible we reserve the right to change, without
notice, specifications or materials that in our opinion will not alter the function of the product.
A Division of Hubbell Lighting, Inc. Web:
Tech Support: (***) 777-4832
For conversion to millimeters,
Housing Housing Options Trims Trims Trims Trims Accessories
Suitable for new construction, whether or not
insulation is present, including residentially in
a single story home or on the second level
of a two story home; or commercially in
spaces such as offices, single story retail,
and hospitality environments. The DBX
complies with requirements for AirShield
with ASTM E283 and the Washington State
with DBX and has a positive upward spring
action to ensure a snug fit to the ceiling
plane, eliminating unwanted light leak, and
sagging over time. Trims come standard
with a painted white trim ring.
Porcelain socket with brass or copper screw
shell. Socket snaps into trim carrier to place
lamp in proper position ensuring consistent
appearance and performance. Socket is
cap. Thermal protector prevents fixture from
overheating when improperly installed or
over-lamped. Refer to trim for specific lamp
information. Lamps furnished by others.
integral real nail compatible with common
joist systems and materials. Joist alignment
tab for rapid and consistent positioning
and convenient nail removal features for
easy re-positioning. Integral snap-on T-bar
grip-lock feature and rigid 24 telescoping
bar hanger design 150% stronger than
conventional designs. Auxiliary mounting
points for additional fasteners or wire
suspension to structure. Bar hangers are
captive with positive extension stop and
locking feature to fix position, and can be
reoriented 90 to housing. Optional sheet
metal screw for steel construction with SBH

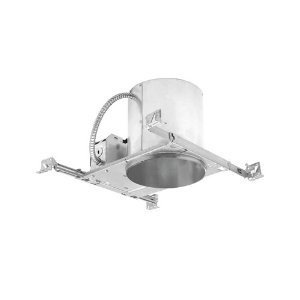

Galvanized steel housing with full wraparound
plaster frame. Housing adjusts
1/2" to 21/2" thick ceilings. Notched
mounting frame for easy alignment. Housing
includes knock out free integral Romex
clamps, overspray protection, universal J-box
with snap-out sides, universal J-box with
rigid or BX fittings, thermal protector, and
a grounding pigtail. Removable K.O. for
remodel use (plaster flange clips required).
Rated for 8 #12 90 conductors (4 in/4 out).
Removable housing for field inspection of
wiring. Pre-installed wire quick connects
IC and Non-IC rated. UL, CUL listed for
damp location and through wiring.
Thermally protected. Air Shield
