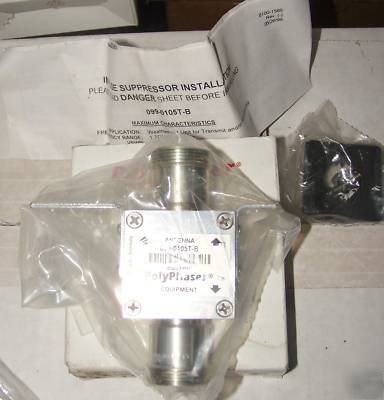

Polyphaser 099-0105T-b weather tight antenna transmit
Application: Weather tight unit for transmit and/or receive only
Surge: 20 kA IEC 1000-4-5 9/20 us Waveform
Frequency Range: 1.7 GHz to 2.0 GHz
VSWR: <1.1:1 over frequency range
Insertion Loss: < 0.1 dB over frequency range
Throughput Energy: <10 uJ for 3 kA, 80/20 uS waveform
Operating Temp: -40 to +85 degrees Cel.
Storage Temp: -40 to +85 degrees Cel.
Relative Humidity: 90% at 40 degrees Cel.
Vibration: 1G at 5 Hz to 100 Hz
