NEW Professional Laboratory / University Microscope
Superior in design and in performance, the microscope incorporates a wide range of features designed for university and laboratory use. Superb optical clarity and reliable mechanical engineering assure years of top performance. The Plan objective lenses offers superior clarity and flatness of field. The Widefield 10x /18mm eyepiece and pointer standard in one eyepiece. The dual viewing head with 30 inclined eyepiece, and vertical eyepiece with diopter, rotates 360 for easy sharing by more than one student. Permits dual viewing, or mounting of optional video adaptor on vertical tube. DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) objectives. The lenses are all parfocalled, parcentered and color-coded. Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives, features textured rubber knurling for easy grip. Mounted in reverse position to facilitate ease in changing slides. The illunination is provided by a 12v - 20 watt halogen with variable rheostat control. Illuminated on/off switch, 3-wire grounded cord and plug.
Focusing includes both coaxial coarse and fine focusing controls - coarse has tension adjustment, fine is graduated.
The slide stagemeasures 140mm x 135mm (5-1.2 in. x 5-1/4 in.) with a built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls, (70mm (x) by 50mm (y)) movement with graduations of 0.1mm. 1.25 N.A. Abbe condenser has rack & pinion focusing, iris diaphragm, swing-out filter holder with clear blue, green and yellow filters supplied. The frame is rugged cast aluminum, gray enamel finish.
The microscope has a 185mm x 235mm (7-1/4 in. x 9-1/4 in.) base and a 380mm (15 in.) height with the inclined eyepiece, and 455mm (18 in.) with the vertical eyepice attached. Net wt. 6.5 kgs (14.2 lbs).
You can see more pictures here: Microscope Pictures.
To see a diagram of this model micrscope, go here: Manufacturer's Diagram

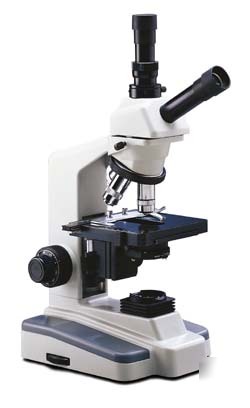

The photo below is a stock photo taken from the manufactuer's site:
