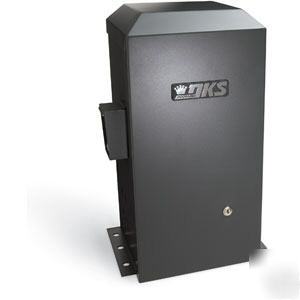

Doorking 9070 9070-080 slide gate operator motor
The Model 9050 and 9070 operators are designed to operate vehicular slide gates in residential and light-duty commercial applications only. These operators are designed so that they can easily be mounted in the front, center or rear of the gate without any costly and time consuming field modifications. In addition, the operators can be pad or post mounted to meet any installation requirements.
* Self-adjusting, no maintenance magnetic limits.
* Ports for plug-in loop detectors.
* Fail-safe release (fail-secure optional).
* Built-in power On/Off switch.
* Maximum gate length 22-feet.
* Maximum gate weight 500 pounds*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
* 1/2 HP continuous-duty motor.
* Class I and Class II applications.
* Compliant with UL 325 and 991. ETL listed. (Note: To be compliant with UL 325 and industry safety guidelines, a secondary entrapment prevention device(s) is required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
* Dimensions: 12"W x 24"H x 11.5"D
OPTIONS AVAILABLE WITH THIS OPERATOR:
Heater kit for cold environments.
Base plate to post mount this operator (does not include posts).
All gate operators should be installed by a professional installer only.
