Digital coating paint thickness gauge f&nf w/ software
Digital Coating Paint Thickness Gauge F&NF W/ Software

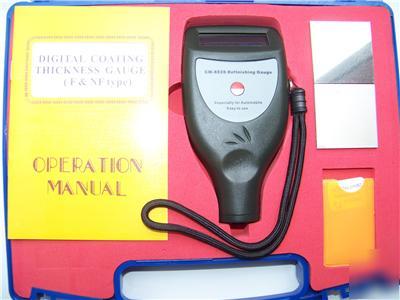

New Digital Portable Coating Thickness Gauge
For Non-magnetic materials on magnetic or non-magnetic metal
Especially for Automotive Industry Easy to Use
This brand new 8828 portable digital coating thickness gauge / Refinishing Gauge uses magnetic induction and eddy current to measure the coating thickness non-magnetic materials on magnetic materials and non-metallic coatings on non-magnetic metals with built-in probes. It offers high accurate and fast measurement and meets the standards of ISO2178 and ISO2360 as well as DIN, ASTM and BS.
The built-in F probe can measure the thickness of non-magnetic materials (including paint, plastic, porcelain enamel, copper, zinc, aluminum, chrome, etc.) on the magnetic materials (such as iron, nickel, etc.). It is often used for galvanizing layer, lacquer layer, porcelain enamel layer, copper tile, aluminum tile, alloy tile, paper, etc.
The built-in N probe is applied to measure the thickness of non metallic coatings on non magnetic metals, such as anodizing, vanish, paint, enamel, plastic coating, powder on aluminum, brass, non magnetic stainless steel, etc.
Wide measuring range and high resolution
Automatic substrate recognition without guessing / choosing the probes
Single and Continuous Measurement mode
RS232C interface capable of communicate with computer by optional software & cable for statistics and printing
One button can easily do all the jobs
Operating Principle: magnetic induction/ eddy current (F/NF)
* 10MM(0.4 ) LCD 4 digits display
* Measuring Ranges: 0-1250 um/0-50 mil
* Resolution: 0.1um (0-99.9um) 1um (over 100um)
* Accuracy: 1-3%n or 2.5um or 0.1 mil
* Metric Imperial convertible
* Operating Temperature: 0 C-50 C (32 F-122 F)
* Operating Humidity: Less than 80% RH
* Power Supply: 4X1.5AAA (UM-4) battery
* Dimension: 126X65X27mm (5X2.6X1.1")
* Weight: about 81g/0.2lb. (Without battery)
* Calibration Foils (4 pcs.)
* SOFTWARE & CABLE FOR RS232C
