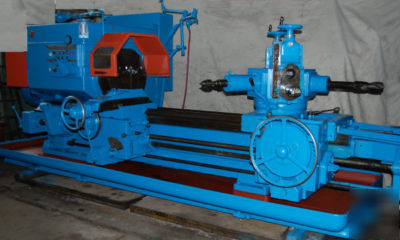

#4A WARNER & SWASEY "SQUARE-HEAD" SADDLE TURRET LATHE
New 1962, Serial 1868117, Lot 24, Model 4A,
24" 3-Jaw Independant Chuck w/Jaws
Power Rapid Traverse to Carriage
Power Rapid Traverse to Saddle
(3) Flanged Tool Holders - (2) Sliding Tool Holders
Hole Thru Spindle...................... 9.25"
Bar Capacity, Round.................... 9"
Bar Capacity, Square................... 6.375"
Bar Capacity, Hexagon.................. 7.75"
Swing Over Bed Ways.................... 29.5"
Swing Over Carriage Guard.............. 28.25"
Swing Over Carriage Horn............... 22.44"
Turning Length, Maximum................ 59.875"
Carriage Longitudinal Travel (Z-Axis).. 68.375"
Cross-Slide Cross Travel (X-Axis)...... 17"
Turret Longitudinal Travel (Z-Axis).... 68.375"
Spindle-Face to Turret, Maximum........ 80.19"
(16) Spindle Speeds, Range............. 10 to 526 RPM
Carriage Longitudinal Feeds (Z-Axis)... .005 to .167 IPR
Cross-Slide Cross Feeds (X-Axis)....... .003 to .103 IPR
Turret Longitudinal Feed (Z-Axis)...... .005 to .167 IPR
Motor Horsepower....................... 75/37.5 HP
Electrical System...................... 440-220/3/60
Overall Dimensions, L x D.............. 19'1" x 7'9"
Weight, Approximately.................. 21600 LBS
