240 gal northland reactor-t-316 s/s-42.7/14.3 psi #6074

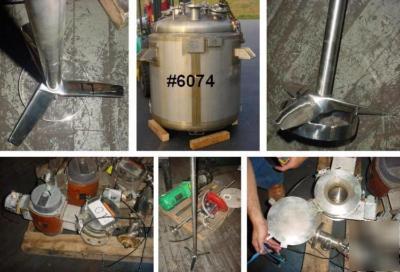

240 GALLON NORTHLAND REACTOR - T-316 S/S - 42.7/14.3 PSI JACKET
1 - used approx. 240 gallon Northland Stainless Inc. Reactor. T-316 stainless steel inner shell (7 ga.) inner top head (1/4 in.) and inner bottom head (3/16 in). T-304 stainless steel jacket shell (7 ga.) and jacket head (3/16 in.) Johns-Manville 814 insulation and stainless steel sheathing. T-316 stainless steel flanges and couplings. 42 in. ID x 42 1/2 in. straight side. Shell MAWP 42.7 psi at 176 deg. F. Min DWT -20 deg F at 42.7 psi. Stainless jacket MAWP 14.3 psi at 176 deg. F. National Board #1932. Northland serial #957008. .188 in. shell head jacket & jacket head thickness. Bolted dish top with misc. inlets including swing open 18 in. dia. manway and 6 in. flanged opening for agitator drive. With .5 HP/.23 kw Lightnin Vektor drive. UL listed. 230/460V 1725 RPM. Pressurized mechanical seal. Vektor model V5S37 serial #95/E35628. Stainless steel shaft approx. 1 1/4 in. dia. x 57 in. long with removable (by set screws) 3 pitched turbine blades and stabilizer ring. Approx. 15 in. blade span. Unit built in 1995. Shell & jacket thickness .188 in. Top head thickness .250 in. Lug mounted. Approx. 3 in. center bottom outlet approx. 2 1/2 in. bottom outlet. Schematic drawing in PDF format available at http:// /pdf/6074.pdf. F.O.B. - Cleveland OH
