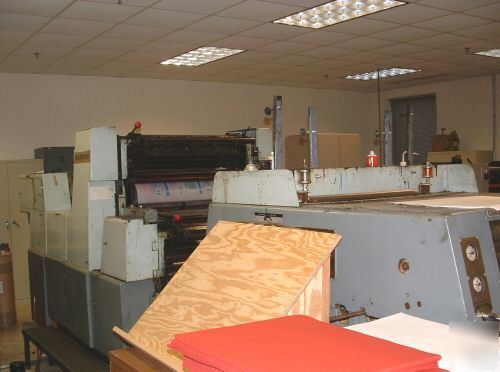

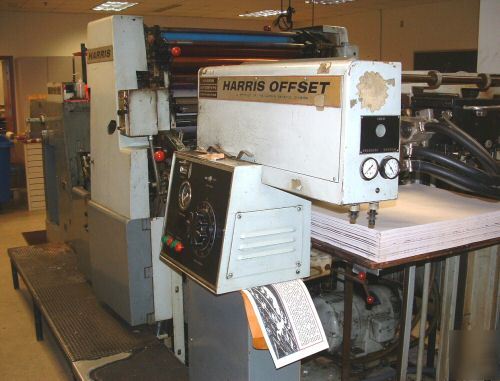

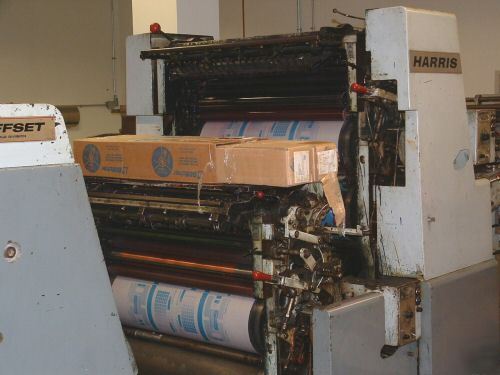

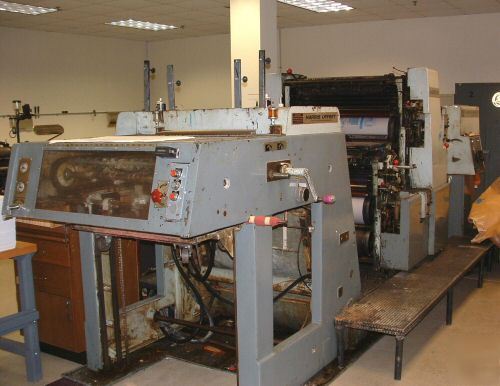

Harris 23 x 29 2C offset printing press - microflow


Stock size 23" x 29" maximum, 9" x 12" minimum, .030 Maximum thickness
Transfer size 22-5/8" x 29-1/2" maximum
Speed (sheets per hour) 8000 maximum, 6500 normal
Pile Feeder - Harris Stream Feed, Center Separation
Register Mechanism - Harris Feed Roll
Side register - Pull Type, right or left, adjustable while printing
Trip-off - 4 Auto-electronic Sheet Detectors plus manual Trip Control at Delivery and Operator's position
Grippers - Individual Spring Type
Delivery - Full Jogging, Auto-receding with Vacuum Slow-down Wheels & Sheet Blowdown
Ink Distribution - 4 Ink form rollers different diameters - Total 21 rollers
Water Distribution - Harris Micro-flow (no covers) for lint free solids and halftones
Electrical - AC - 7-1/2 hp Main Drive Motor, Feeder Gast Pump 1-1/2 hp, Delivery Gast Pump 1-1/2 hp, Feeder Pile Hoist Motor 1/2 hp
Lubrication - Automatic and Centralized Lubrication
Floor Space including Platforms 6'11" x 17'1"
Color of Press - upper half - Light Gray, lower half - Medium Gray
