Cincinnati series 105-122 rise & fall production mill

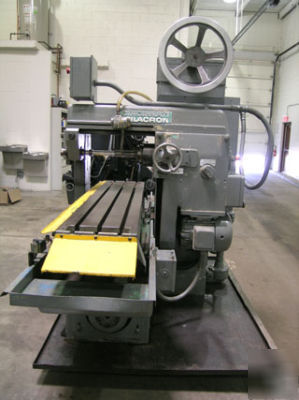

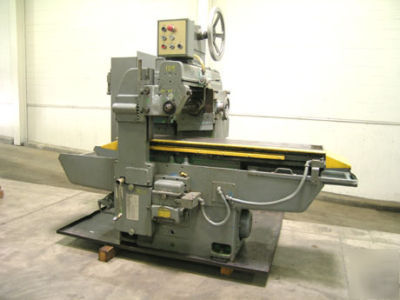

(1) USED - CINCINNATI MODEL NO. 105-122 RISE & FALL PRODUCTION MILLING MACHINE*
Motor Driven with 7.5 HP, 3 Phase, 60 Cycle, A.C. Spindle Drive Motor. 2 HP,

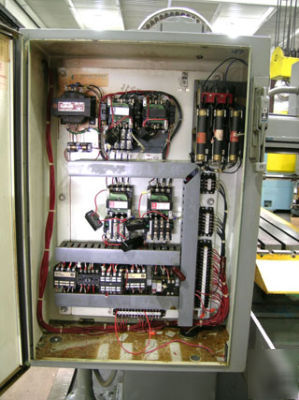

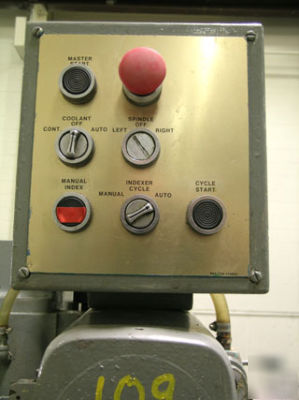

3 Phase, 60 Cycle, A.C. Feed Drive Motor, with Electrical Control Panel and Operators Control Station
Working Surface of Table 52" x 12"

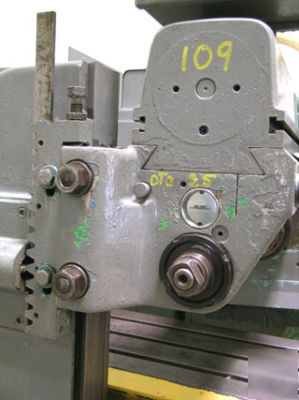

Vertical Adjustment of Spindle Carrier 10"
Distance, Table to Centerline Spindle - Maximum 13-1/4"
Distance Between Spindle Carrier & Overarm Brace 20-1/8"
Number & Range, Spindle Speeds (16) 30 - 2000 RPM
Number & Range, Table Feeds (16) 1/2 - 60 IPM
Spindle Carrier Feed Rates 1/2 - 40 IPM
Table Rapid Traverse Rates 300 IPM
Automatic Rise & Fall with Dwell at Bottom.
Automatic Backlash Eliminator.
Right Hand, Left Hand, Hi-Lo Spindle Speed Selector.
