Canon laser encoder motor rotary positioner kp-1M160

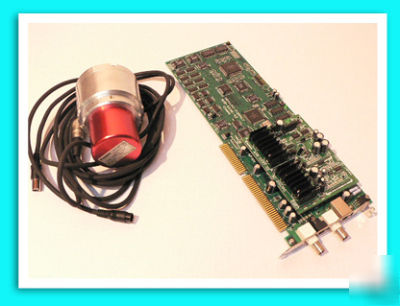

Canon Laser Encoder Motor KP-1M160
Rotary Positioner & Control Board
According to our research, the model KP-1M 160 is supposed to offer
81,000 sinusoidal wave signal / rotation
35 degrees (centered around the Z phase)
30 degrees (centered around the Z phase)
18 ~ 28 C, 40 ~ 60 % RH (no condensation)
Storage temperature & humidity (packed)
0 ~ 50 C, 20 ~ 80 % RH (no condensation)
*The above specifications apply to cases in which is used together with the System Controller SC-01.
Included is the H01H PC-Format Control Card with SC-01H/PC.
This is a super high-precision laser rotary encoder using a semiconductor laser and an integrated a motor unit directly. The result is a high-precision positioning control system. That obtains a sinusoidal wave with 81,000 periods per revolution from the laser rotary encoder and digitally divides it into 4096 parts. This achieves a resolution of 0.0039 angle-seconds. By connecting the system controller equipped with optimum control, higher precision can be attained in positioning.
