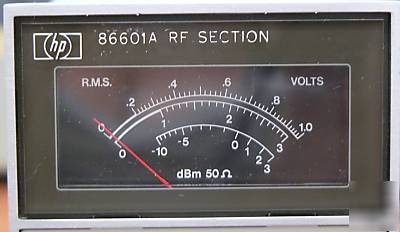

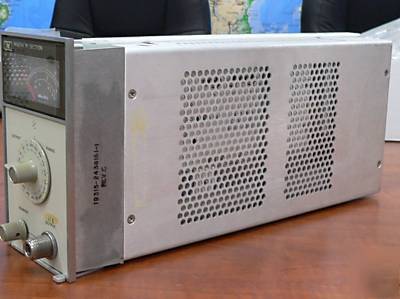

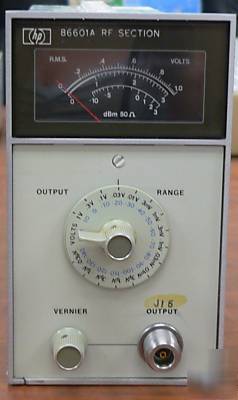

Hp 86601A rf section, .01 - 110 mhz


Designed for use in the 8660-Series Generator Mainframes, the 86601A RF Section Plug-in delivers 0.01 to 110MHz with 1Hz resolution. Output level (into 50-ohms) is available from +13 dBm to -146 dBm with an accuracy of 1 dB (+13 to -66 dBm) and 2 dB (-66 dBm to -145 dBm). Offers flatness (output level variation with frequency ) of < 0.75 dB, non harmonic related spurious of -80 dBc.
