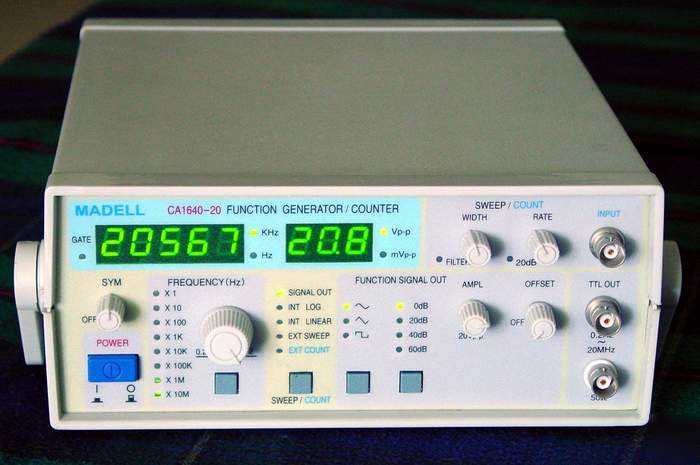

20 mhz function generator/frequency counter/zapper
* Frequency raqnge: 0.2Hz-20MHz, both the function generator and the frequency counter.
* Output signals: symmetrical or non-symmetrical sine, square and triangle waveforms.
* Output signal levels: 20Vpp at 1M ohm, 10Vpp at 50 ohm.
* LED readouts of frequency and voltage levels.
* Internal or external frequency sweeping.
* Light weight, easy to carry around. Size: 8.5"x4"x10".
* Include: user's manual, two BNC cables.
Test it in our Los Angeles showroom. Call (***)670-9023 to make arrangement.
0dB, 1Vp-p~10Vp-p, 10% accuracy
20dB, 0.1Vp-p~1Vp-p, 10% accuracy
40dB, 10mVp-p~100mVp-p, 10% accuracy
Square: <5% at 10kHz, 5Vp-p, rising time<17nS
input low pass filter, used in frequency counter mode
