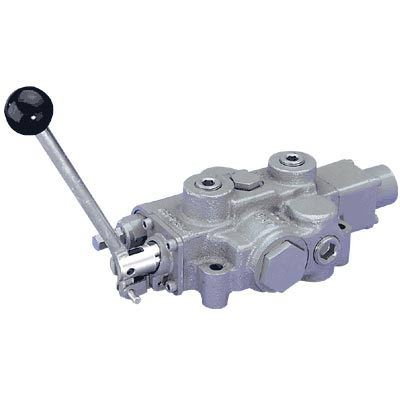

Prince one spool control valve, model# hc-v-R22
Prince One Spool Control Valve, Model# HC-V-R22
4-way with floats; has balanced spools with select fit. Load checks to prevent load drops when shifting directions. Good for use on snowplows, dozers, loaders etc. Float valves allow blade or bracket to float along ground. Will accept power beyond plug conversion. Relief preset at 2000 PSI. Adjustable from 1500 to 3000 PSI. USA Max. Flow (GPM): 30, Inlet Port (in.): 3/4, Outlet Port (in.): 3/4, Working Port (in.): 1/2, Max. PSI: 3,000, Directional Control: 4 way, Spool (qty.): 1, Adjustable Release Pressure PSI: 1,500 - 3,000
