Pittman 245 rpm @ 24V dc lo-cog robotic gear motor
PITTMAN 245 RPM @ 24V DC LO-COG ROBOTIC GEAR MOTOR

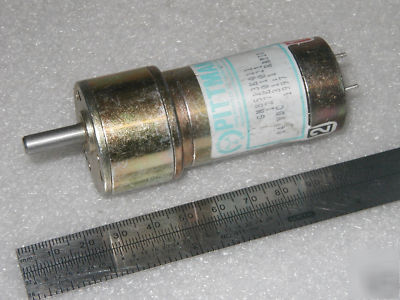

24V DC precision gear motor assembly manufactured by Pittman, assembly # GM8513E411. This motor features copper graphite brushes and ceramic magnets. This motor features a single shaft with sleeve bearings. The no-load output speed of the 31.1:1 spur gear drive is about 245 RPM at 24V DC. These motors will work on higher or lower voltages and the speed will be proportional. The output shaft of the gear drive is .1875 in diameter by .700 in long with a flat. Both the motor and gear head use bronze sleeve bushings for smoother operation. There are many uses for these motors, including robotics and models. The motor is 1.175 inch in diameter by 2.0 inch long and the overall length of the assembly is 3.0 inch, not counting the shaft. The gear head is 1.375 inch diameter. This gear motor weighs about 7.1 oz / 200 grams.
