Kitamura H400 cnc 4-axis horizontal machining center

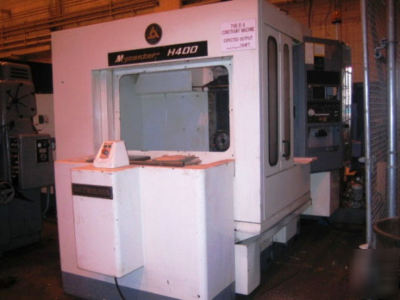

Kitamura H400 CNC 4-Axis Horizontal Machining Center
X-Axis Travel ......................... 24"
Y-Axis Travel ......................... 20"
Z-Axis Travel ......................... 20"
Pallet Size x 2 ....................... 15.7" x 15.7" X
Pallet Indexing ....................... .001 Degree
Pallet Load Capacity .................. 880 Lbs.
Table Surface to Spindle Center ....... 1.97"-22"
Spindle Speed, (2-Speed Gear Head) .... 7000 RPM
Spindle Drive Motor ................... 20 HP/15 HP AC
Rapid Feedrate, X,Z Axes .............. 787.4 IPM
Rapid Feedrate, Y Axis ................ 629.9 IPM
Tool Changer .......................... 100 ATC
Max Tool Diameter x Length ............ 3.74" x 13.8"
Max Tool Diameter, Adjacent Empty ..... 5.90"
Max Tool Weight ....................... 22.05"
Dimensions ............................ 138"x158"x125"
Approximate Weight .................... 18,743 Lbs.

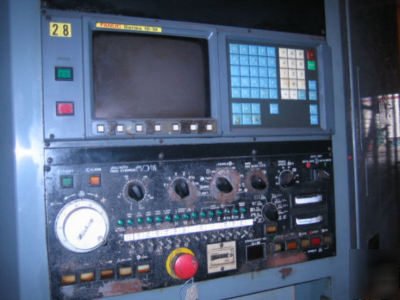

Fanuc 15M CNC Control w/ 14" CRT

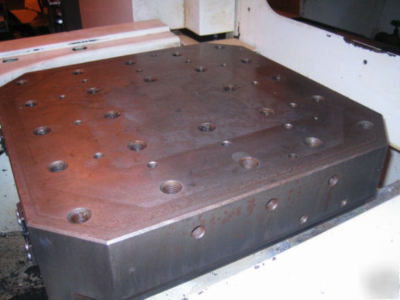

Twin 15.7" x 15.7" Pallets w/ Auto Pallet Changer
100-Position Automatic Tool Changer, Top-Mounted
