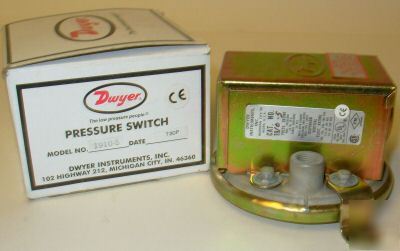

Dwyer instruments differential pressure switch 1910-5
Dwyer Instruments Compact Differential Pressure Switch
Approx. deadband @ min. set point 0.15, @ max. set point 0.16.
Temperature Limits: -30 to 180 F (-34 to 82.2 C).
Pressure Limits: 45" w.c. (11.2 kPa) continuous, 10 psig (68.95 kPa) surge.
Electrical Rating: 15 A @ 120-480 VAC, 60 Hz. Resistive 1/8 HP @ 125 VAC, 1/4 HP @ 250 VAC, 60 Hz. Derate to 10 A for operation at high cycle rates.
Electrical Connections: 3 screw type, common, normally open and normally closed.
Set Point Adjustment: Screw type inside conduit enclosure.
Product Link: http:// /htdocs/pressure/Series1996Spec.CFM
