> Acme transformer 11 kva 575/230Y/133 11KVA 230 y 3R 3PH
Acme transformer 11 kva 575/230Y/133 11KVA 230 y 3R 3PH

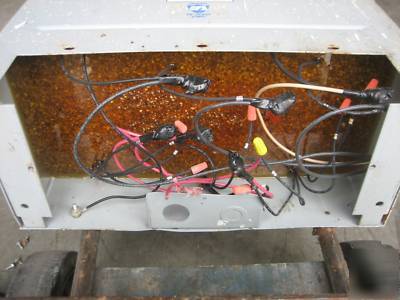

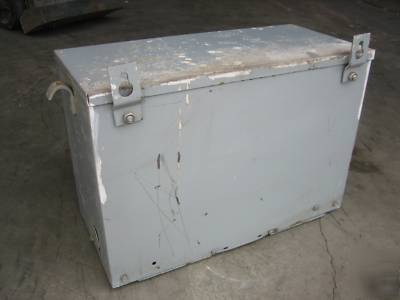

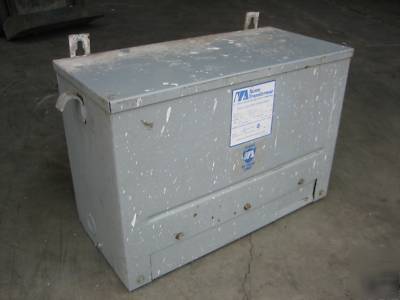

This Transformer is in Excellent Condition Internally and Good Condition Externally. There are White Paint Specks on the Exterior Surfaces.

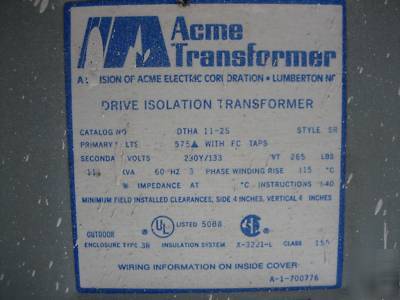

Catalog No: DTHA-11-2S Style SR
Secondary Volts: 230Y/133 WT: 265 Lbs
11 kVA 60 HZ 3 Phase Winding Rise 115 Deg. C
Minimum Field Installed Clearances: Side 4 Inches Vertical: 4 Inches
20" (Width) x 9.5" (Depth) x 14" (Height)
