Cin. 10 cinturn 4-axis univ. turning ctr., series 1410

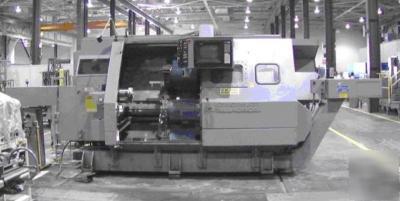

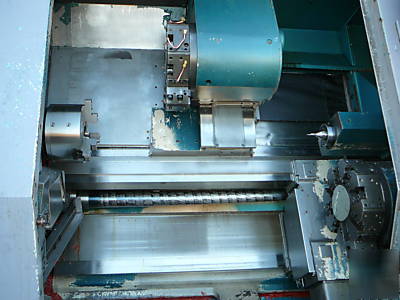

Cincinnati Milacron 10 Cinturn 4-Axis Univ. Turning Ctr., Series 1410 - Model AF, S/N 5340U10-86-014

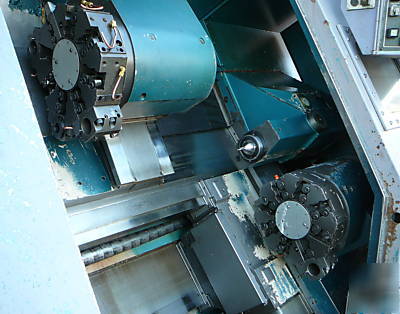

* 2 Turrets, 8 OD Tools/8 ID Tools

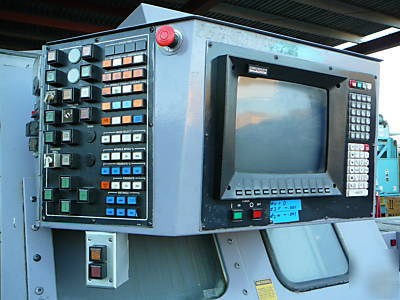

* Cincinnati Milacron 4A CNC Controls with Wear Offset Format and Fanuc Tape Reader
* Slide Position Accuracy (Unidirectional) X & Z Axes - 0.001"
* Slide Repeatability X & Z Axes = 0.0001"
* Traverse Rates - Feed Rate Range .1 to 200 ipm / Rapid Rate 400 ipm
* Spindle Nose A2-6 Bore 2.56"
* In Cycle Elapse Time 10,725 Hrs., Power On Elapse Time 45,869 Hrs.
