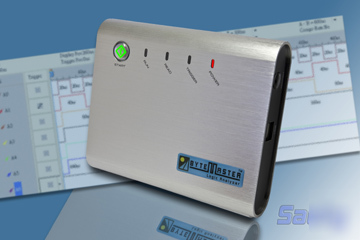

Bytemaster lad-16128U 16-channel logic analyzer
Saelig Bytemaster Logic Analyzer
Limited time offer: Get CAN and 1-Wire protocol decoders for free - a $550 value!
Description: The Saelig LAD-16128U is a 16-channel PC-based logic analyzer that also offers flexible protocol analysis capabilities. The USB-powered unit includes decoder modules for I2C, UART, SPI protocols.
The ByteMaster LAD-16128U utilizes available PC memory as the sample buffer, allowing selectable sample depths from one to hundreds of millions of samples.
GlobalSat DG-100 GPS Data Logger
For a limited time, the LAD-16128U comes with five free decoders (I2C, UART, SPI, CAN BUS and 1-Wire).
Saelig ByteMaster 16-channel Logic Analyzer. Compare this product to the ZeroPlus LAP-16128U.
* PC-based, USB-connected and powered ideal for portability
* 128Kb memory depth / channel
* Compression up to 255:1 depending on activity
* 100 MHz synchronous operation on all channels
* 200 MHz asynchronous operation (16 channels)
* 5 ns glitch capture capability
* Intuitive, easy-to-use Windows application
* Export feature send to .txt or .csv files for printing / processing
* Timing / State / Single-processor / Bus / Real-time instruction trace analysis
* Flexible signal trigger options (rising/falling/either edge; high, low)
* Hex / Binary / Decimal display formats
* Variable Trigger position (100% pre-trigger to 100% post-trigger, plus up to 16776191 clock cycles of post-trigger delay)
* Channels can be default selected to 'Don't Care' for search or comparison purposes
* Software updates available via CD-ROM or web downloads
* 100 Hz to 200 MHz sampling frequency
* Data Acquisition Module (130 mm x 100 mm x 30 mm, 175 g)
* USB Cable included 1 meter
* 16 channel lead set, plus ground and clock leads
* 20 high-quality test grabbers
UART (RS232C & RS485) Analysis
Saelig Company, Inc.
